Description

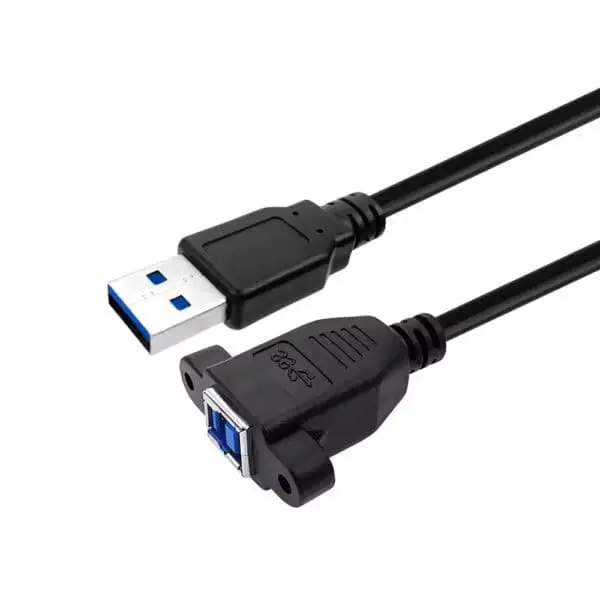

Exemplifying top-tier connectivity, the Panel Mount USB 3.0 A to B Extension Cable is engineered for diverse applications.
Sporting a USB 3.0 A male connector and a USB 3.0 B female connector with secure screw locking, it ensures steadfast connections.
Supporting super speed USB 3.0 devices with a 5 Gbps transfer rate and backward compatibility with USB 2.0, it offers versatility.
Crafted with durable materials, including bare copper conductors and aluminum foil braiding shielding, it guarantees stable connectivity.
From industrial automation to multimedia setups, this cable delivers reliable performance across the board.
Its specifications:
- Connector 1: USB 3.0 A male
- Connector 2: USB 3.0 B female with screw locking
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 30±0.5mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28/28/24AWG
- Outer Diameter: 5.5±0.15mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps), and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
