Description

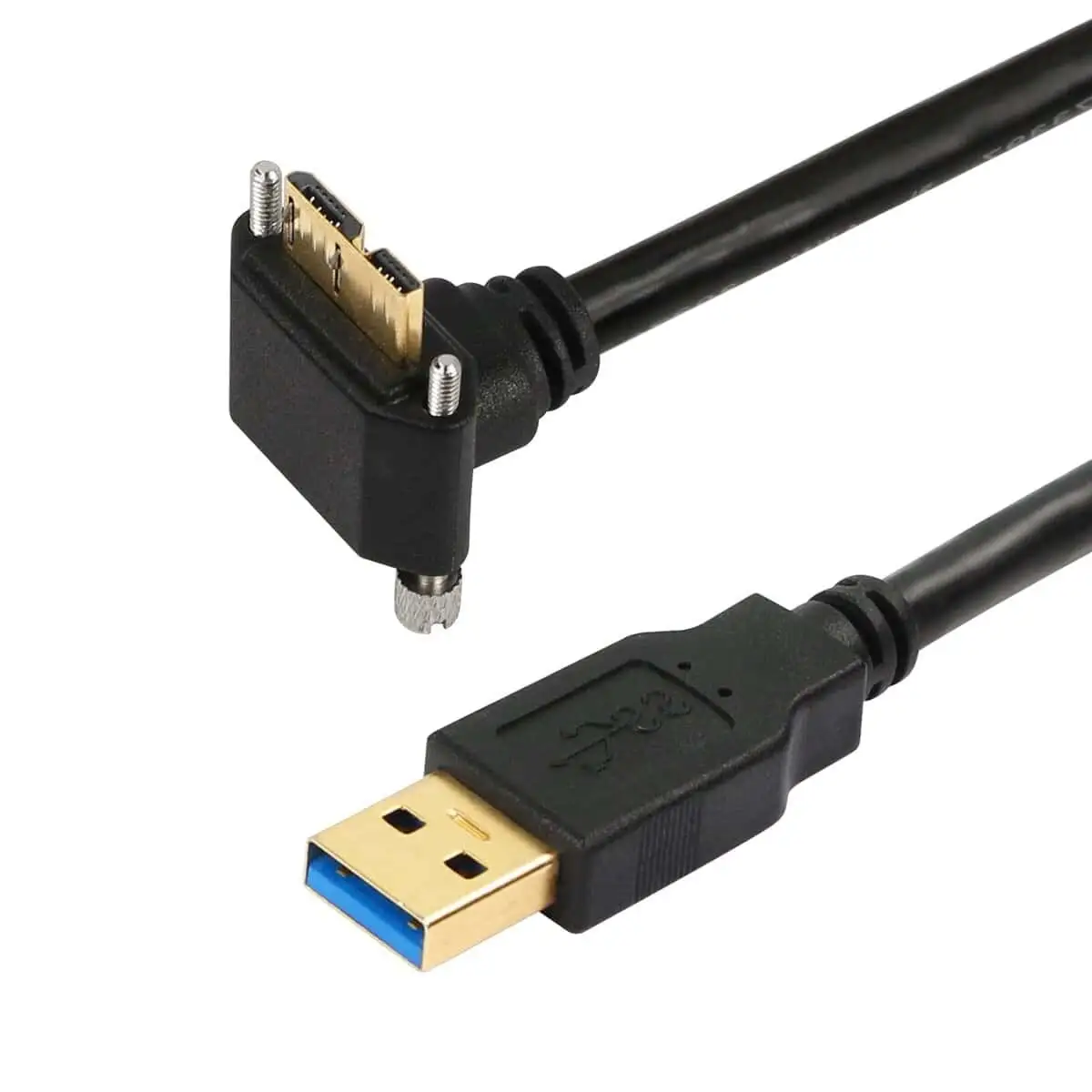

The Panel Mount Up Down Angle Micro USB 3.0 Male to USB A Male Cable is a versatile solution for various connectivity needs.
Featuring an angled Micro USB 3.0 male connector with screw locking and a USB 3.0 A male connector, it ensures secure attachment with M2 nickel-plated nuts and screws within a 19±0.5mm hole pitch.
With its bare copper conductors and 28/28/24AWG wire gauge, it offers reliable signal transmission. Shielded by aluminum foil and braiding, it provides protection against interference.
Supporting super-speed USB 3.0 devices at 5 Gbps and backward compatibility with USB 2.0, it’s suitable for a wide range of applications.
Its specifications:
- Connector 1: Angle Micro USB 3.0 male with screw locking
- Connector 2: USB 3.0 A male
- Gold plated contact, Nickel plated shell
- Nut and Screw type: M2 nickel plated
- Hole Pitch: 19±0.5mm
- Cable Conductor: Bare Copper
- Wire Gauge: 28/28/24AWG
- Outer Diameter: 5.5±0.15mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Backward compliant with high-speed USB 2.0 (480Mbps), full-speed USB 1.1 (12 Mbps) and low speed USB 1.0 (1.5 Mbps)
- Compliance: RoHS, REACH
