Description

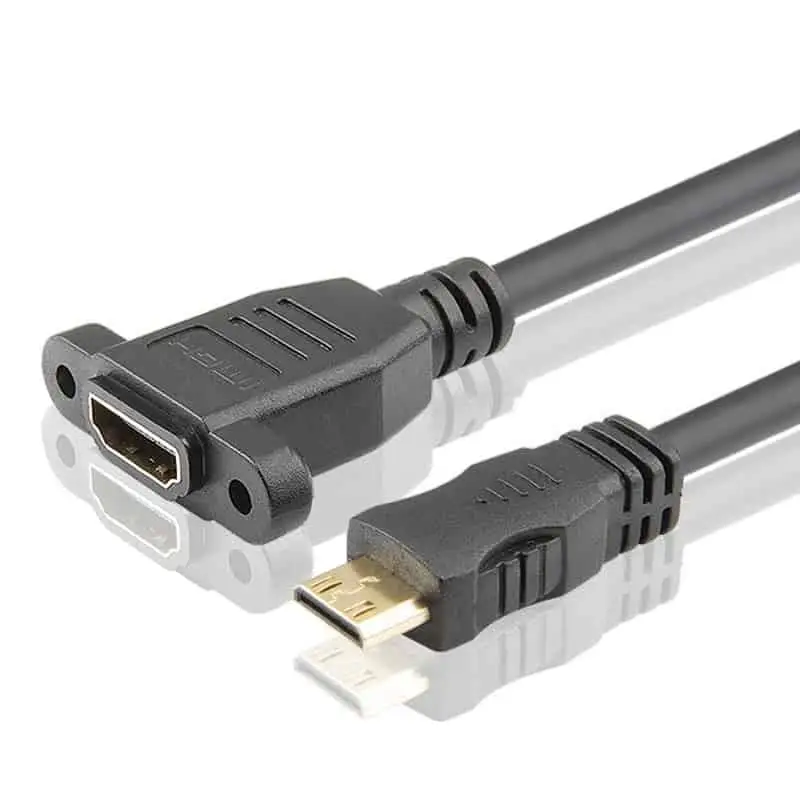

Introducing our Mini HDMI to HDMI Panel Mount Cable, your key to seamless connectivity. With a Mini HDMI male connector on one end and a HDMI female connector on the other, expect top-notch signal transmission.
Crafted with a bare copper conductor and shielded with aluminum foil and braiding, this cable ensures reliability. Encased in a durable PVC jacket, it’s built to last.
Experience stunning video resolutions up to 4K@50/60 (2160p), with support for 3D video, Deep Color, and x.v. Color™. Elevate your multimedia experience today with our Mini HDMI to HDMI Panel Mount Cable.
Its specifications:
- Connector 1: Mini HDMI male, gold plated
- Connector 2: HDMI female with screw locking, gold plated
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 29±1mm
- Cable Conductor: Bare copper
- Insulation: Foamed PE SKIN/HDPE
- Wire Gauge: 30AWG
- Outer Diameter: 5.5mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Bandwidth up to 18Gbps
- 4K@50/60 (2160p), which is 4 times the clarity of 1080p/60 video resolution
- 3D video, Deep Color, and x.v. Color™
- Compliance: RoHS, REACH
