Description

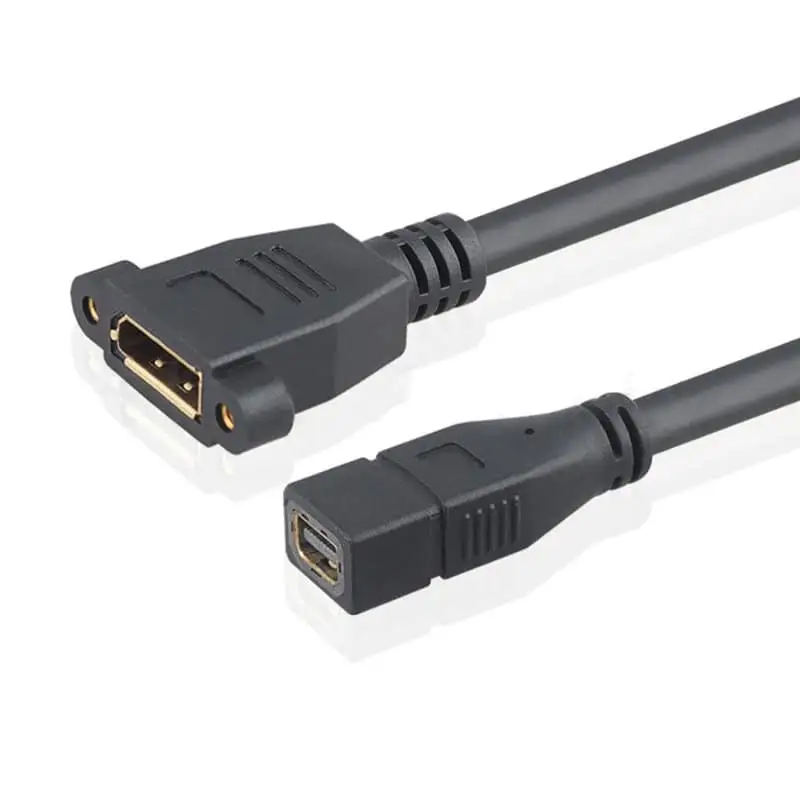

FARSINCE Mini DP Panel Mount Cable, engineered to deliver premium quality and reliability.
With gold-plated connectors on both ends, this cable ensures exceptional conductivity and longevity. The screw locking mechanism on the DisplayPort female connector guarantees a secure and stable connection.
Its tinned copper conductor and 32AWG wire gauge ensure optimal signal transmission without compromise. Encased in injection-molded housing and a PVC jacket, durability is prioritized while maintaining flexibility.
With support for High Bit Rate (HBR) bandwidth and up to 4K resolution, this cable meets DisplayPort 1.2 standards effortlessly.
Compliant with RoHS and REACH regulations, this cable is environmentally conscious.
Its specifications:
- Connector 1: Mini DisplayPort female, gold plated
- Connector 2: DisplayPort female with screw locking, Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 27±0.5mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 32AWG
- Outer Diameter: 5.0±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection molding
- Jacket: PVC
- Supports a High Bit Rate (HBR) bandwidth and up to a 4K resolution
- Built to DisplayPort 1.2 standard
- Compliance: RoHS, REACH
