Description

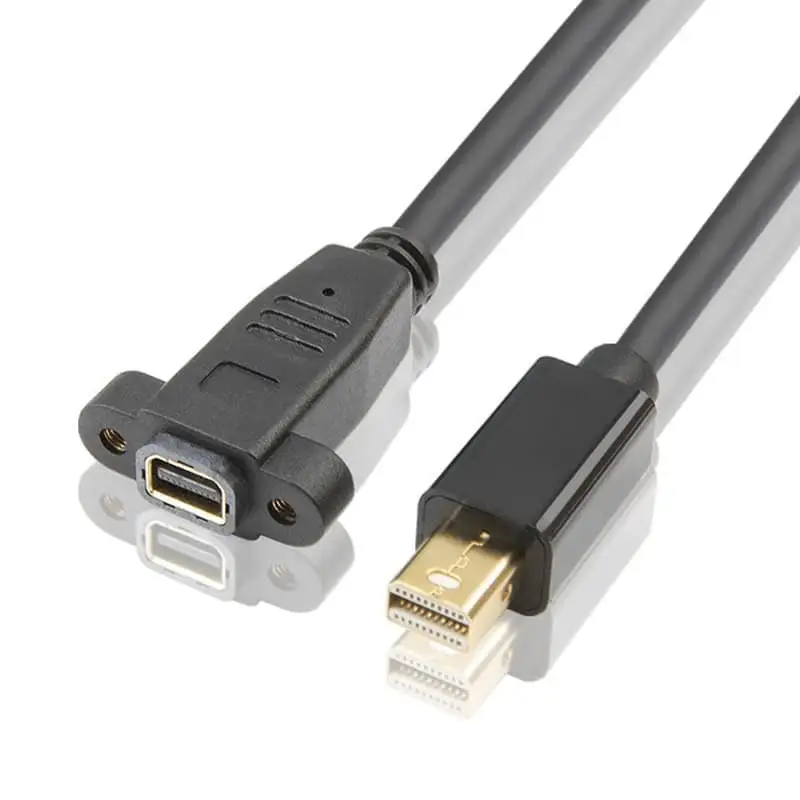

Introducing our premium Mini DisplayPort Panel Mount cable. Crafted with gold-plated connectors for superior conductivity and durability, this cable ensures a secure connection with its screw locking mechanism.
Its tinned copper conductor and 32AWG wire gauge guarantee optimal signal transmission. Supporting up to 4K resolution and built to DisplayPort 1.2 standard, it offers uncompromised quality. RoHS and REACH compliant, it’s environmentally conscious too. Elevate your connectivity with our Mini DisplayPort Panel Mount cable.
Its specifications:
- Connector 1: Mini DisplayPort male, Gold plated
- Connector 2: Mini DisplayPort female with screw locking, Gold plated contact, Nickel plated shell
- Nut and Screw type: M3 nickel plated
- Hole Pitch: 18±0.5mm
- Cable Conductor: Tinned Copper
- Wire Gauge: 32AWG
- Outer Diameter: 5.0±0.2mm
- Shielding: Aluminum foil, Braiding
- Housing: ABS shell for Mini DisplayPort male, Injection molding for Mini DisplayPort female
- Jacket: PVC
- Supports a High Bit Rate (HBR) bandwidth and up to a 4K resolution
- Built to DisplayPort 1.2 standard
- Compliance: RoHS, REACH
