Description

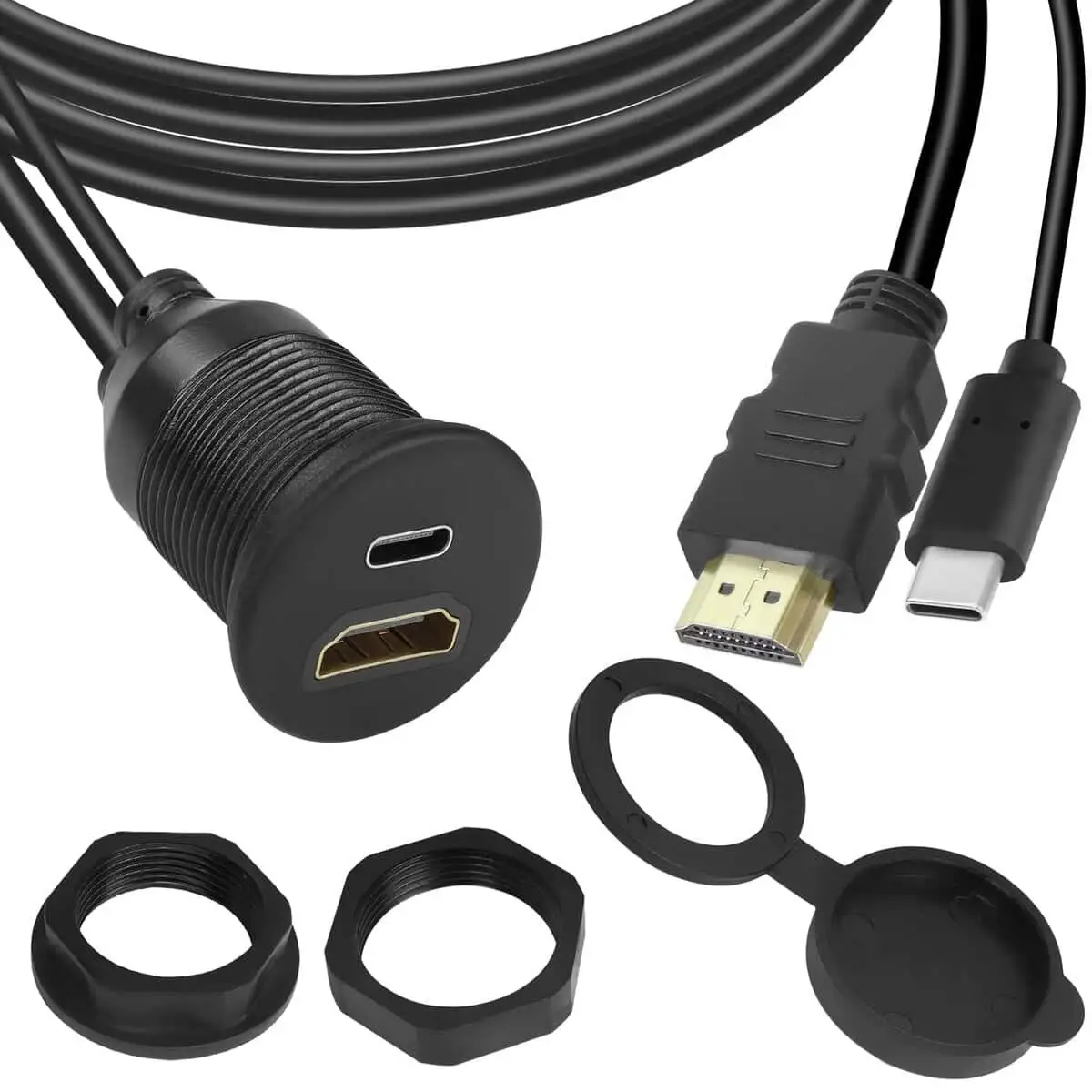

Introducing our top-notch HDMI 2.0 and USB Type C Flush Mount Cable – your ultimate dashboard connectivity solution!
With gold-plated connectors and bare copper conductors, enjoy lightning-fast data transfer and crystal-clear 4K@60Hz resolution. Plus, its durable PVC jacket and aluminum foil shielding ensure long-lasting performance.
Equipped with HDMI 2.0 male and female connectors, experience high-definition streaming with a bandwidth of up to 18Gbps. And with USB 3.0/3.1 Type-C male and female connectors, enjoy super-speed data transfers of up to 10Gbps.
Installation is easy – simply secure it with the included aluminum nut. Plus, it’s RoHS and REACH compliant for peace of mind.
Its specifications:
- Connector 1: HDMI 2.0 male, Gold plated
- Connector 2: HDMI 2.0 female, Gold plated
- Connector 3: USB 3.0/3.1 Type-C male, Gold plated contact, Nickel plated shell
- Connector 4: USB 3.0/3.1 Type-C female, Gold plated contact, Nickel plated shell
- Cable Conductor: Bare Copper
- Wire Gauge: 32AWG for HDMI OD6.0mm; 30/30/24AWG for USB 3.0 Type-C OD5.5mm; 32/32/24AWG for USB 3.1 Type-C OD4.5mm
- Shielding: Aluminum foil, Braiding
- Housing: Injection mold
- Jacket: PVC
- HDMI Connector supports a resolution up to 4K@60Hz, Bandwidth up to 18Gbps
- USB 3.1 Type-C support transfer rate reaches to 10 Gbps, Video resolution up to 4K@60Hz
- USB 3.0 Type-C support super speed USB 3.0 devices and the transfer rate reaches to 5 Gbps
- Compliance: RoHS, REACH
