Description

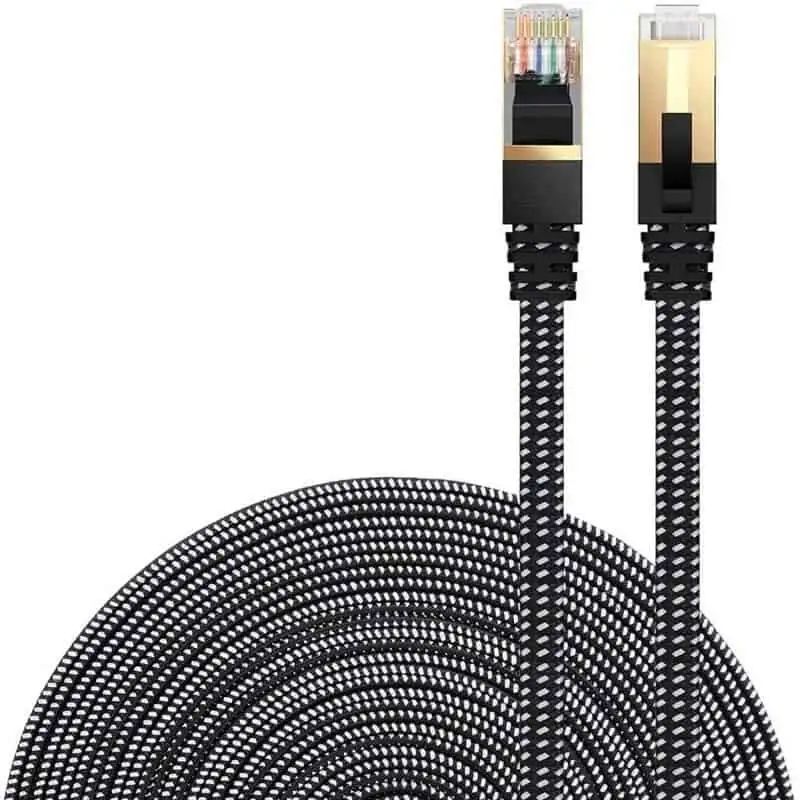

With a double-protect nylon braided construction, our braided Ethernet cable is not only strong and heavy-duty but also flexible, wear-resistant, and built to last.
Ideal for network adapters, hubs, routers, DSL/cable modems, gaming consoles, patch panels, and other high-performance networking applications, it supports bandwidth up to 600MHz/2000MHz and data transmission speeds of up to 10Gbps/40Gbps.
Besides, it connects to LAN/WAN segments and networking gear at maximum speeds, providing outstanding transmission performance and low signal losses.
This braided Ethernet cable boasts stranded cable for maximum flexibility and both round and flat cable options.
Each pair of wires is individually shielded with aluminum foil to ensure optimal signal integrity.
And it meets or exceeds TIA/EIA-568-C.2 and ISO/IEC 11801 specifications and is ideal for data center architectural requirements.
Additionally, available in various colors and lengths, our braided Ethernet cable is ROHS and REACH compliant. Its specifications include the following:
- Conductor: Bare copper
- Wire Gauge: 26AWG, 28AWG, 30AWG, 32AWG
- Insulation: Foam PE
- Insulation Color: Blue/White, Blue; Orange/White, Orange; Green/White, Green; Brown/White, Brown
- Shielding: Aluminum foil
- Braiding: 16/5/0.12mm Al-MG
- Drain: Bare copper
- Jacket: PVC
- Outer diameter: Accordingly
- Connector 1: RJ45 FTP
- Connector 1: RJ45 FTP
- Contact: Gold plated 50U, Nickel plated shell
- Testing: Fluke tester
Thus, this braided Ethernet cable is the ideal solution for high-performance networking applications, combining durability, flexibility, and superior signal transmission.
Upgrade your network infrastructure with this exceptional patch cord cable and experience the difference today.
Download:
- Data sheet of CAT7 Cat8 Braided ethernet patch cord
Order Information:
FS17112F-C7**-xxx: Braided Cat7 F/FTP Flat patch cord, 32AWG, BC conductor
- **=color: GY=GREY, BK=BLACK, WT=WHITE, BU=BLUE, RD=RED, YL=YELLOW, OG=ORANGE, GN=GREEN
- xxx=Length: 003=0.3M, 005=0.5M, 010=1.0M, 018=1.8M, 030=3.0M, 050=5.0M, 075=7.5M, 100=10M, 200=20M, 300=30M, 400=40M, 500=50M
- For Example: FS17112F-C7BU-018=Braided CAT7 F/FTP flat patch cord, BC conductor, Blue color, 1.8M Length
