Description

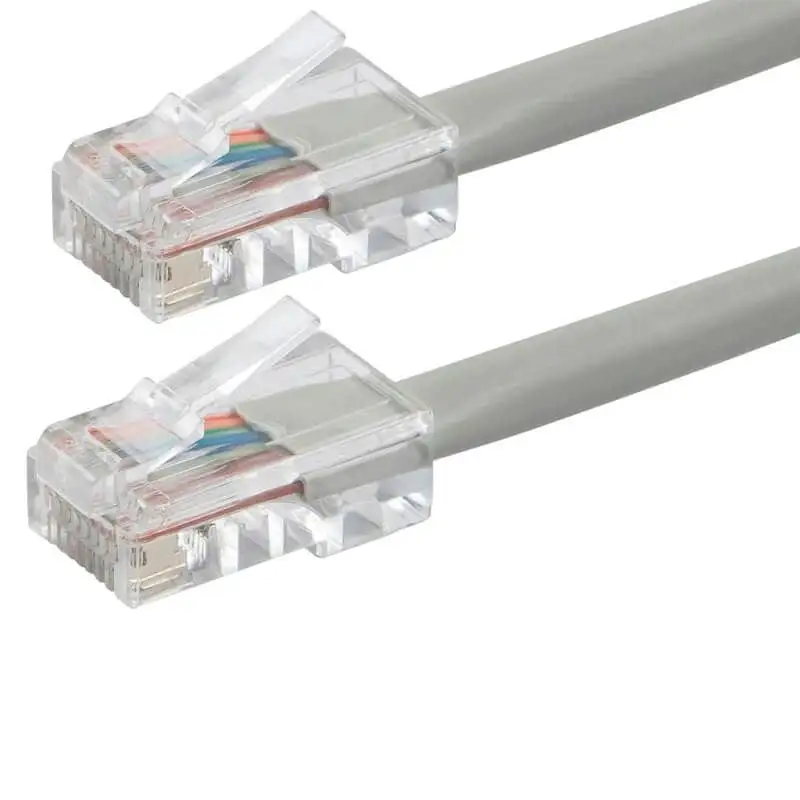

Our bootless cat5e cable is designed without the traditional molded strain relief boots, offering a sleeker, less bulky design ideal for tight spaces and high-density network installations.
It boasts a UTP (Unshielded Twisted Pair) construction with RJ45 connectors and clips, stranded cable for enhanced flexibility, and gold connectors that prevent corrosion and ensure a longer cable life.
This high-performance bootless cat5e cable supports up to 500 MHz, providing exceptional transmission performance and low signal losses.
Besides, it is available in various colors and lengths to suit your needs and is ROHS and REACH compliant.
Specifications:
- Conductor: Bare copper
- Wire Gauge: 26AWG or 24AWG
- Insulation: HDPE
- Insulation Color: Blue/White, Blue; Orange/White, Orange; Green/White, Green; Brown/White, Brown
- Shielding: None
- Braiding: None
- Jacket: PVC
- Outer diameter: 5.0±0.2mm
- Connector 1: RJ45 UTP
- Connector 1: RJ45 UTP
- Contact: Gold-plated 3U
- Testing: Fluke tester
In short, with a sleek design and outstanding performance, this cable is perfect for any project that requires a less bulky and more flexible cable option. Trust us for all your Ethernet patch cord requirements.
Download:
- Data sheet of Bootless ethernet patch cord
Order Information:
FS17301**-xxx: Cat5e U/UTP bootless network patch cable
FS17302**-xxx: Cat6 U/UTP bootless network patch cable
FS17303**-xxx: Cat6 U/UTP bootless network patch cable
- **=color: GY=GREY, BK=BLACK, WT=WHITE, BU=BLUE, RD=RED, YL=YELLOW, OG=ORANGE, GN=GREEN
- xxx=Length: 003=0.3M, 005=0.5M, 010=1.0M, 018=1.8M, 030=3.0M, 050=5.0M, 075=7.5M, 100=10M, 200=20M, 300=30M, 400=40M, 500=50M
- For Example: FS17303BU-018= Cat6 U/UTP bootless network patch cable, 1.8M Length
