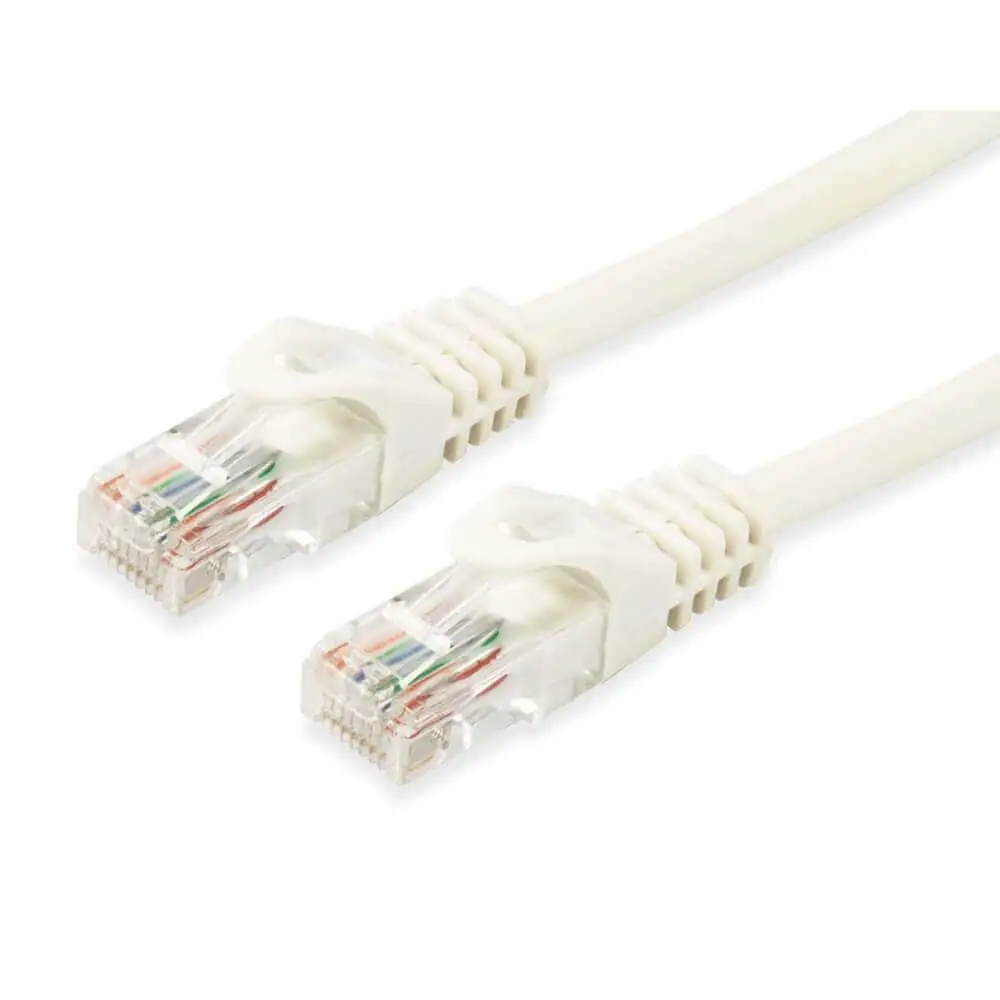

Description
This cat5e patch cord facilitates connecting network switches and hubs that lack an uplink port, ensuring seamless connectivity in your home or office network with 1000 Base-T Gigabit Ethernet.
It complies with TIA/EIA-568-C.2 specifications and delivers Category 5e performance or better.
Our cat5e patch cord’s connectors are equipped with gold-plated contacts, molded strain-relief boots, and snagless molds to combat corrosion, provide durability, and secure connections.
And its performance is further enhanced by bare copper or CCA conductors, which meet communication cable specifications.
Notable features of the cat5e patch cord include a flexible stranded cable design, adherence to ISO/IEC 11801 standards, and suitability for data center architectural requirements.
To suit your needs and preferences, it is available in various colors and lengths and is both ROHS and REACH-compliant for environmental consciousness.
Additionally, this cable’s specifications encompass a 30/28/26/24AWG wire gauge, HDPE insulation, color-coded insulation, a PVC jacket, and an outer diameter measuring 5.0±0.2mm.
Both connectors are RJ45 Cat5e UTP and feature gold-plated 3U contacts. Plus, Fluke testing is conducted on each cable to ensure the highest quality.
In summary, enhance your network connectivity with our adaptable and sturdy cat5e patch cord.
Download:
- Data sheet of Cat5e U/UTP unshielded twisted 4 pairs ethernet patch cable
Order Information:
FS17101A**-xxx: Cat5e U/UTP network patch cord, BC conductor
FS17101B**-xxx: Cat5e U/UTP network patch cord, CCA conductor
- **=color: GY=GREY, BK=BLACK, WT=WHITE, BU=BLUE, RD=RED, YL=YELLOW, OG=ORANGE, GN=GREEN
- xxx=Length: 003=0.3M, 005=0.5M, 010=1.0M, 018=1.8M, 030=3.0M, 050=5.0M, 075=7.5M, 100=10M, 200=20M, 300=30M, 400=40M, 500=50M
- For Example: FS17101ABU-018= Cat5e U/UTP ethernet patch cord, BC conductor, Blue color, 1.8M Length
