Description

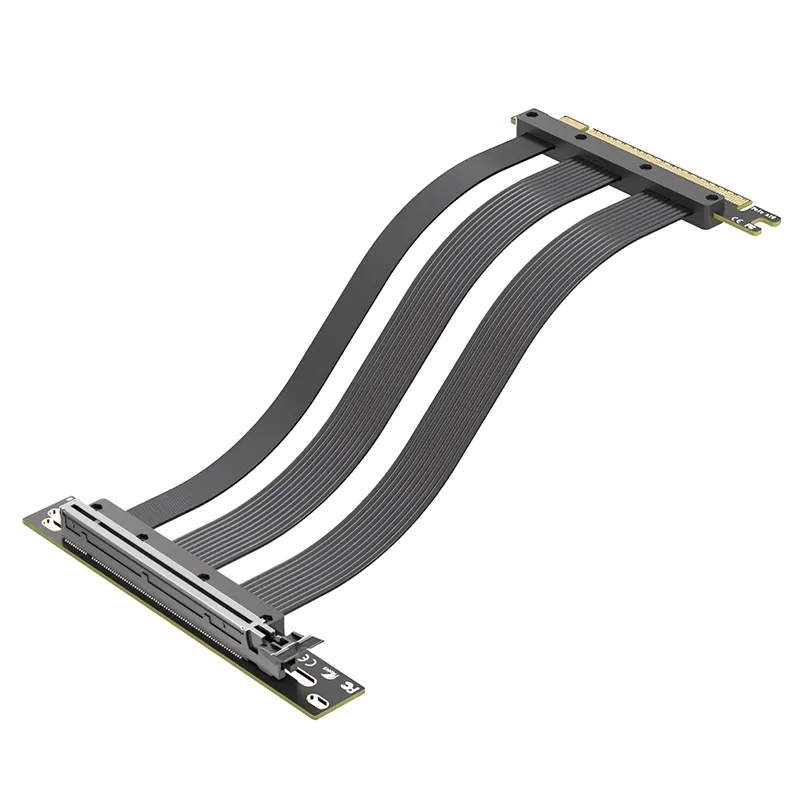

This riser routes a full x16 PCI Express link from the motherboard to a remote x16 socket for vertical GPU installation. A gold‑finger x16 card plugs into the host slot while the opposite end presents a shielded x16 female connector for the graphics card. The impedance‑controlled harness supports PCIe 5.0 signaling at up to 32 GT/s per lane (≈64 GB/s aggregate for x16) with backward compatibility to PCIe 4.0/3.0 devices. It is ideal for tower or ATX cases with vertical GPU brackets, enabling cleaner airflow and cable management without stressing the motherboard.

Farsince employs a multi‑coax ribbon construction and reinforced connector PCBs to contain crosstalk and EMI in high‑power GPU environments. The flexible layout accommodates 90°/180° routing for tight chassis while maintaining link stability. Installation is plug‑and‑play—insert the host card, route the ribbon without sharp bends, seat the GPU in the remote socket, and secure mechanically. Standard length is 200 mm. OEM options include alternative lengths, orientations, retention hardware and project‑specific labeling for SI‑critical builds.

Specifications

• Product Type: PCIe x16 riser/extension cable
• Host Interface: PCIe 5.0 x16 edge connector (male)
• Device Interface: PCIe x16 slot (female)
• Lane Width: x16 pass‑through
• Data Rate: Up to 32 GT/s per lane; ≈64 GB/s aggregate on x16
• Cable Structure: Impedance‑controlled multi‑coax ribbon with overall shielding
• Connector Features: Gold‑plated contacts; reinforced PCB ends
• Application: Vertical GPU mounting in ATX/EBX towers and workstations
• Routing: Supports 90°/180° bends; avoid sharp or repeated tight bends
• Power Design: Pass‑through of slot power and sideband signals
• Compatibility: PCIe Gen5/Gen4/Gen3 graphics cards and motherboards
• Installation: Plug‑and‑play; secure GPU and riser for mechanical stability
• Compliance: RoHS, REACH
• Customization: Length, orientation, retention brackets, labeling
