Description

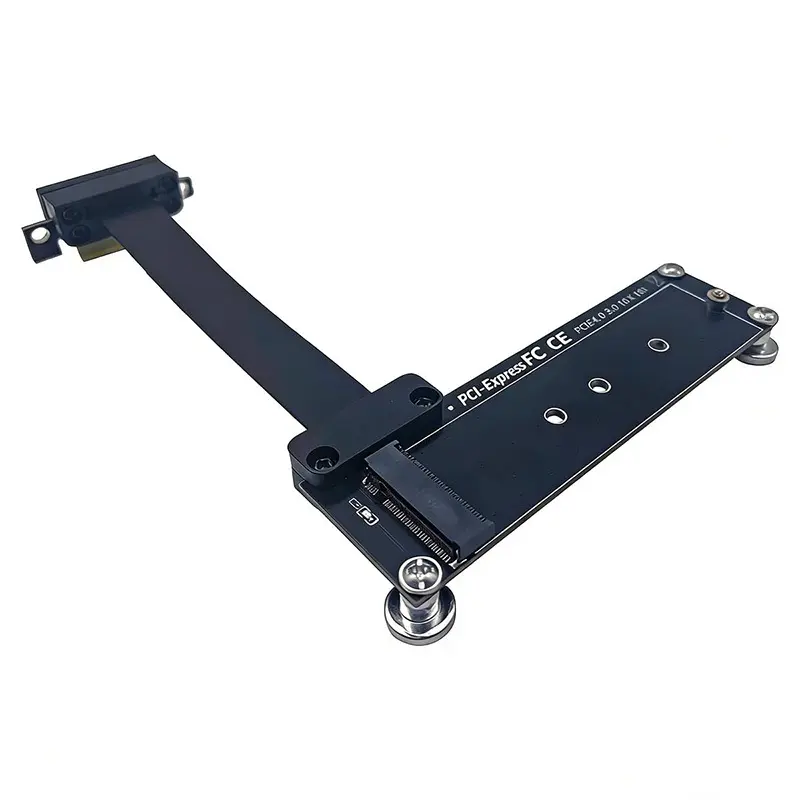

This adapter routes a PCI Express Gen4 x1 link from the motherboard to an M.2 M‑key socket via a shielded flexible cable. A low‑profile x1 gold‑finger card plugs into any PCIe x1/x4/x8/x16 slot, while the remote board accepts 2230/2242/2260/2280 NVMe modules and secures them with included standoffs. It’s a practical way to add an NVMe cache/log drive when other slots are blocked, or to position the SSD for better clearance and airflow in compact or GPU‑dense builds. Throughput is limited to a single PCIe lane, and is backward compatible with PCIe 3.0 hosts.

Farsince engineers the assembly for stable signaling with impedance‑controlled conductors and a reinforced PCB. A right‑angle layout reduces obstruction near the slot, and the magnetic base enables tool‑free placement on steel chassis surfaces for quick installation and service. Power is delivered from the PCIe slot; no additional cables are required. Standard length is 10 cm, and we support OEM customization for cable length, mounting hardware and labeling to match project requirements.

Specifications

• Product Type: PCIe to M.2 NVMe flexible adapter
• Host Interface: PCIe 4.0 x1 edge connector (fits x1/x4/x8/x16 slots)
• Device Interface: M.2 M‑Key socket, NVMe only
• Supported Sizes: 2230 / 2242 / 2260 / 2280
• Cable Direction: PCIe pass‑through, x1 lane
• Data Rate: Up to 16 GT/s (PCIe 4.0 x1); backward compatible with PCIe 3.0
• Cable Structure: Shielded, impedance‑controlled high‑speed flex
• Mounting: Magnetic base with standoffs; right‑angle card for clearance
• Power Design: 3.3 V from PCIe slot; no external power
• Application: Add/relocate NVMe SSD in desktops, SFF cases, benches and test rigs
• Compatibility: NVMe M.2 drives; not for M.2 SATA modules
• Installation: Plug‑and‑play; position module for airflow and cable management
• Compliance: RoHS, REACH
• Customization: Length, mounting hardware, labeling and packaging
