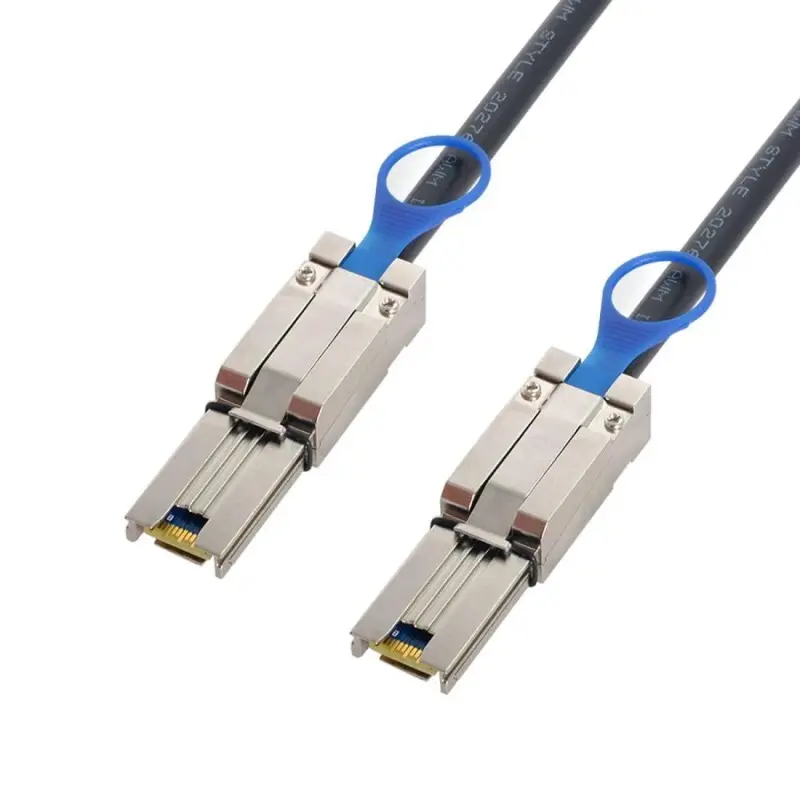

Mini‑SAS SFF‑8088 to SFF‑8088 External Shielded Cable

Links external SAS HBAs/RAID controllers to JBOD or disk enclosures over a 4‑lane mini‑SAS connection.

Model No.:

FS25G00

Brand:

Farsince / OEM

MOQ:

Negotiable

Trade Term:

EXW / FOB Ningbo

Lead time:

2–4 weeks

Customization:

Supported

Sample:

Available

Warranty:

1 Year

Inquiry

Write a Review

Description

This cable connects Mini‑SAS SFF‑8088 (26‑pin) ports end‑to‑end for external SAS storage. Both ends use metal‑shell SFF‑8088 plugs with latching pull‑tabs, providing a 4‑lane straight‑through link between a server HBA/RAID card and an expander, JBOD, or external drive enclosure. Typical deployments include rack servers to DAS/JBOD cabinets, lab arrays, and archival systems where reliable, shielded external cabling is required. The interface supports SAS 2.0 link rates up to 6 Gbps per lane and is backward‑compatible with SAS 1.0; SATA traffic is carried through SAS infrastructure where supported by the host/enclosure.

Farsince builds this assembly with individually shielded differential pairs and an overall braid/foil screen to minimize crosstalk and EMI in dense racks. Precision‑terminated contacts and metal backshells maintain low insertion loss over common run lengths. The latching design installs quickly and resists vibration, while the pull‑tab enables tool‑less release. Standard lengths are available for fast deployment, and we support OEM customization for length, gauge, labeling and harness integration to fit specific cabinet layouts and BOM standards.

Specifications

Product Type: Mini‑SAS external cable, SFF‑8088 to SFF‑8088
Host Interface: SFF‑8088, 26‑pin
Device Interface: SFF‑8088, 26‑pin
Cable Direction: 4x multilane, straight‑through
Application: Connect SAS HBA/RAID to JBOD, expander or disk enclosure
Data Rate: Up to 6 Gbps per lane (SAS 2.0), 4 lanes
Aggregate Bandwidth: Up to 24 Gbps
Wire Gauge: 28 AWG nominal (other options on request)
Cable Length: 0.5 m, 1 m, 2 m, 3 m; custom available
Cable Structure: Individually shielded pairs; overall foil + braid; metal backshells with latch
Installation: Positive‑latch plug with pull‑tab for tool‑less release
Compatibility: SAS 2.0/1.0 HBAs, RAID, JBOD; carries SATA protocol via SAS infrastructure
Compliance: RoHS, REACH
Customization: Length, AWG, labeling, bundling, packaging
Service Support: Engineering support and stable mass‑production supply
