Description

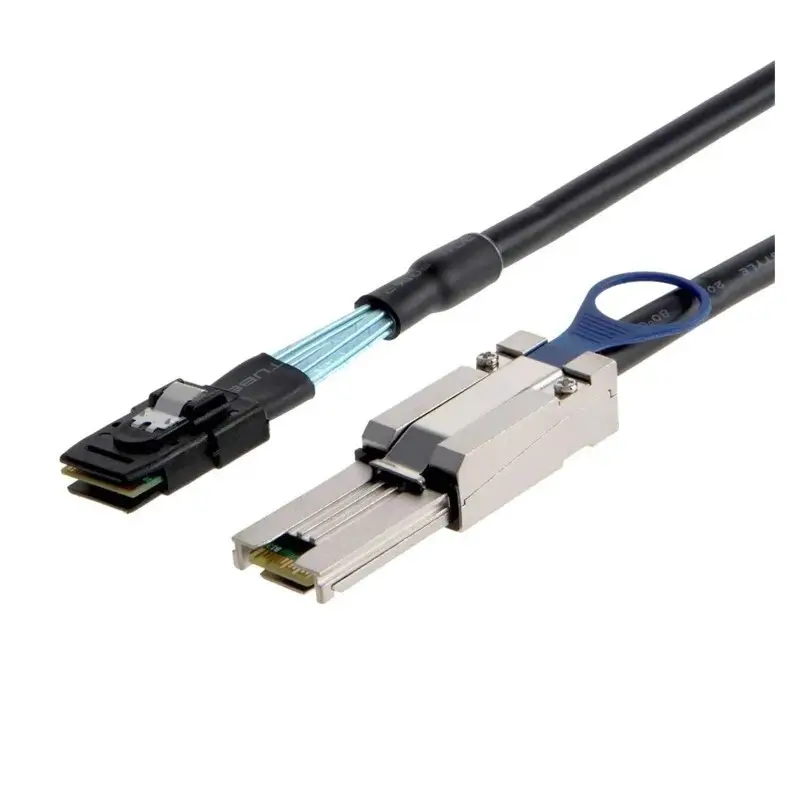

This hybrid Mini‑SAS cable links an external SFF‑8088 26‑pin port to an internal SFF‑8087 36‑pin header for 4‑lane SAS connectivity. It is commonly used to connect a server HBA or RAID adapter with an external SFF‑8088 port to an internal drive backplane, expander, or RAID card that exposes SFF‑8087. The assembly carries SAS 2.0 signaling up to 6 Gbps per lane and is backward compatible with SAS 1.0; SATA traffic can be transported through SAS infrastructure when supported by the host and enclosure.

Farsince manufactures this cable with individually shielded differential pairs and an overall foil/braid, paired with a metal SFF‑8088 backshell and positive latching on both ends to maintain signal integrity in dense racks. The external plug features a pull‑tab for tool‑less service, while the internal 8087 latch ensures a secure connection to backplanes. Standard lengths cover typical chassis runs, and we provide OEM customization for length, wire gauge, labeling and sleeve style to suit specific cabinet layouts and BOM requirements.

Specifications

• Product Type: Mini‑SAS hybrid cable, SFF‑8088 (external) to SFF‑8087 (internal)
• Host Interface: SFF‑8088, 26‑pin, 4‑lane
• Device Interface: SFF‑8087, 36‑pin, 4‑lane
• Cable Direction: 1:1 straight‑through multilane (4x)
• Application: Connect external SAS HBA/RAID ports to internal backplanes or RAID/expander cards
• Data Rate: Up to 6 Gbps per lane (SAS 2.0)
• Impedance: 100 Ω differential (nominal)
• Aggregate Bandwidth: Up to 24 Gbps
• Wire Gauge: 30 AWG nominal (other gauges on request)
• Cable Length: 0.5 m, 1 m, 2 m; custom lengths available
• Cable Structure: Individually shielded pairs with overall foil + braid; metal backshells
• Installation: Latching connectors; external 8088 with pull‑tab for tool‑less release
• Compatibility: SAS 2.0/1.0 HBAs, RAID cards, expanders, and backplanes; SATA passthrough where supported
• Compliance: RoHS, REACH
• Customization: Length, AWG, labeling, sleeve, and harness integration
• Service Support: Engineering assistance and stable volume supply
