Description

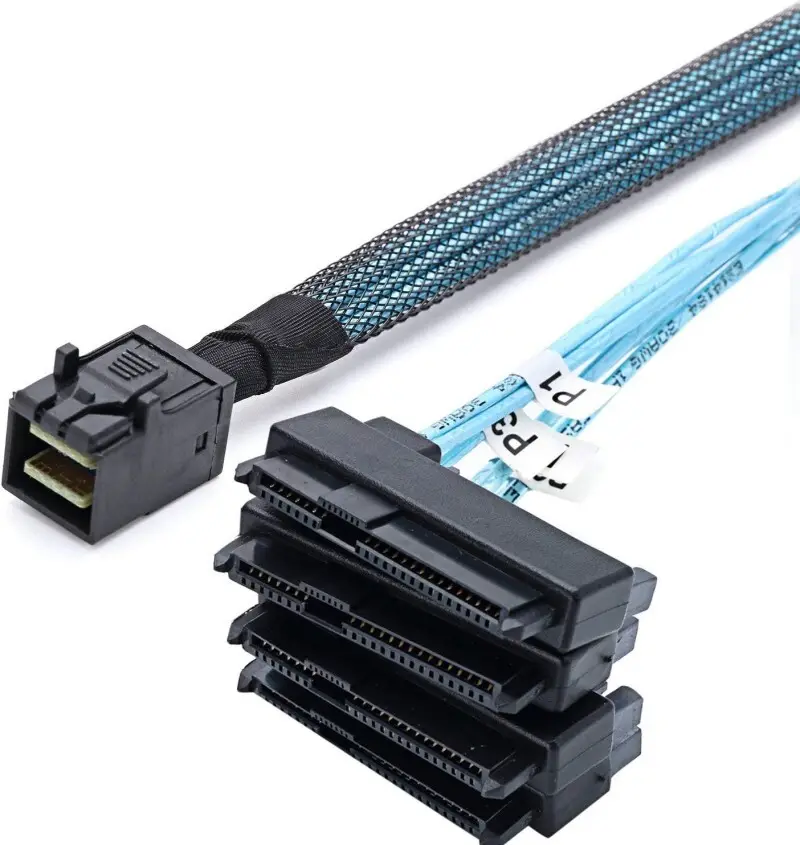

The Farsince Mini SAS HD SFF-8643 4i to 4x SFF-8482 Fan-Out Cable with Molex Power is designed for internal storage expansion in servers, workstations, and RAID systems. It connects one SFF-8643 host-side interface on an HBA or RAID controller to four SFF-8482 drive-side connectors for multi-drive deployment.

Each branch includes a dedicated 4-pin Molex power lead to simplify internal cabling. This cable is intended for forward breakout applications only. SATA drive support depends on controller and system architecture.

Specifications

• Product Type: Internal Mini SAS HD to 4x SFF-8482 fan-out cable

• Host Interface: 1 × SFF-8643 4i, 36-pin Mini SAS HD

• Drive Interface: 4 × SFF-8482, 29-pin

• Power Interface: 4 × 4-pin Molex, one per drive

• Configuration: Forward breakout, host to target

• Lane Configuration: 4 × 1-lane drive links

• Supported Data Rate: Up to 6Gb/s per drive link

• Application: SAS HBA / RAID controller to internal drives

• Use Environment: Internal server, workstation, and storage chassis

• Compatibility: SAS drives; SATA drive support depends on controller and system architecture

• Notes: Not for reverse breakout or external SAS interfaces
