Description

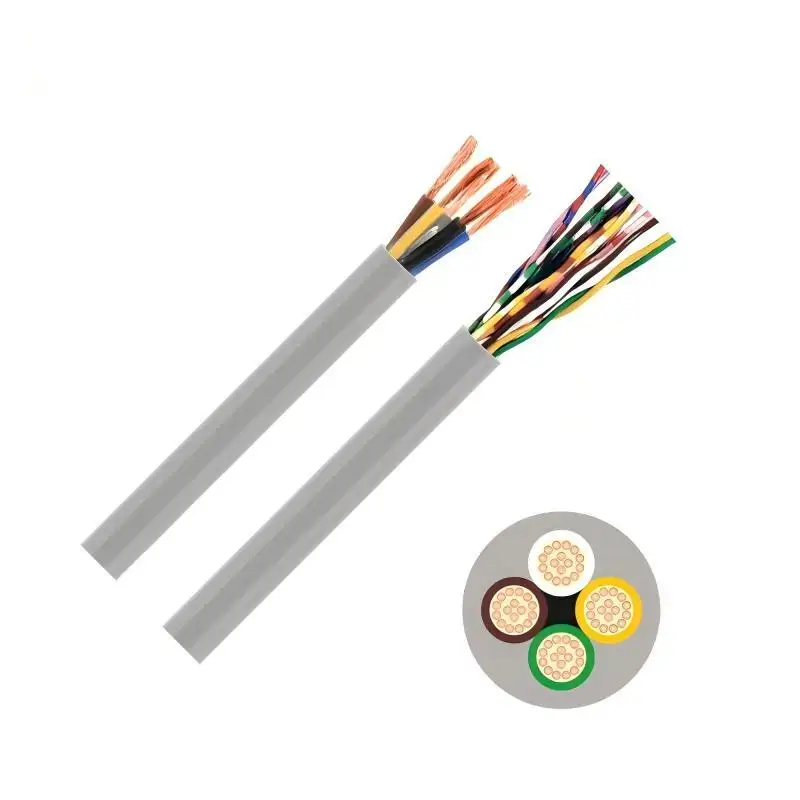

LiYY control cable is designed for low-voltage signal and data transmission in electronic equipment, control cabinets, computer systems, and process control units. Its unshielded construction uses bare copper stranded conductors with PVC insulation and a PVC outer sheath, making it suitable for general internal wiring where shielding is not required. The cable follows DIN VDE 0812 and uses DIN 47100 color-coded cores for clear identification during installation. It is flame retardant according to IEC 60332-1 and supports both fixed laying and limited flexible use. With its practical structure and stable electrical performance, LiYY cable is widely used in control, measurement, and signal circuits where compact design, flexible routing, and reliable transmission are required.

Specifications

• Product Type: LiYY Control / Data Cable
• Application: Signal and data transmission for electronic devices, computer systems, and process control units
• Cable Structure: Unshielded flexible control cable
• Conductor: Bare copper stranded conductors
• Insulation: PVC, TI2
• Sheath Material: PVC, TM2
• Core Identification: DIN 47100 color code
• Cable Standard: DIN VDE 0812
• Flame Retardancy: IEC 60332-1
• Peak Operating Voltage: max. 350V for <0.25mm² / max. 500V for ≥0.25mm²
• Test Voltage: 1500V core/core
• Bending Radius: 5 × cable OD fixed / 10 × cable OD flexible
• Temperature Range: -30°C to +70°C fixed / -5°C to +70°C flexible
• Sheath Color: Grey (RAL 7032)
• Compliance: RoHS, REACH
