Description

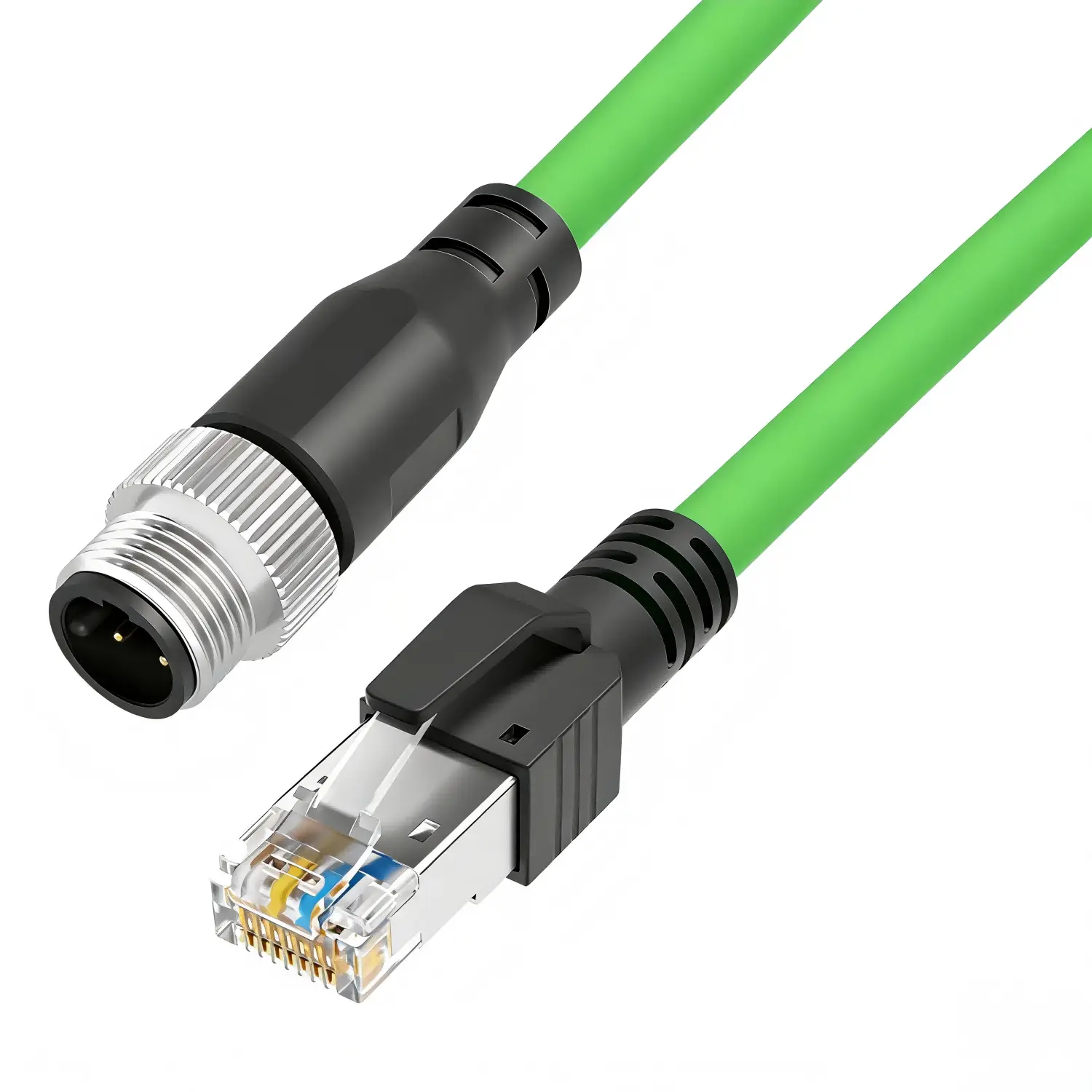

This Cat5e SF/UTP RJ45-to-M12 D‑code assembly provides a screened, mechanically robust link between standard RJ45 Ethernet equipment and M12 D‑code Ethernet ports commonly found on industrial devices. The cable uses 4×22 AWG stranded conductors with overall foil + braid screening, a RJ45 plug at one end and a screw-locking M12 D‑code 4‑pin male/female connector at the field end.

Designed for industrial automation, this cable reduces EMI ingress to sensors, cameras, and field switches while delivering stable 1 Gbps performance. The M12 D‑code connector provides secure, vibration-resistant locking and IP67-level sealing when mated. Farsince can tailor cable length, jacket compound and connector gender to meet Profinet, EtherNet/IP or custom fieldbus requirements.

Specifications

• Product Type: Cat5e SF/UTP industrial patch cable
• Host Interface: RJ45 (8P8C) plug
• Device Interface: M12 D‑code 4‑pin connector
• Cable Direction: RJ45 → M12
• Application: Industrial automation, Profinet, machine vision

• Data Rate: 1 Gbps (100 MHz)
• Wire Gauge: 4×22 AWG stranded copper
• Lengths: 1 m, 3 m, 5 m
• Cable Structure: SF/UTP — overall foil + braid, 4 UTP pairs
• Jacket: PVC (fixed) / PUR (drag-chain, oil-resistant)
• Installation: Suitable for continuous-flex (robotic) and stationary runs

• Compatibility: Ethernet switches, PLCs, cameras, PoE devices
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
