Description

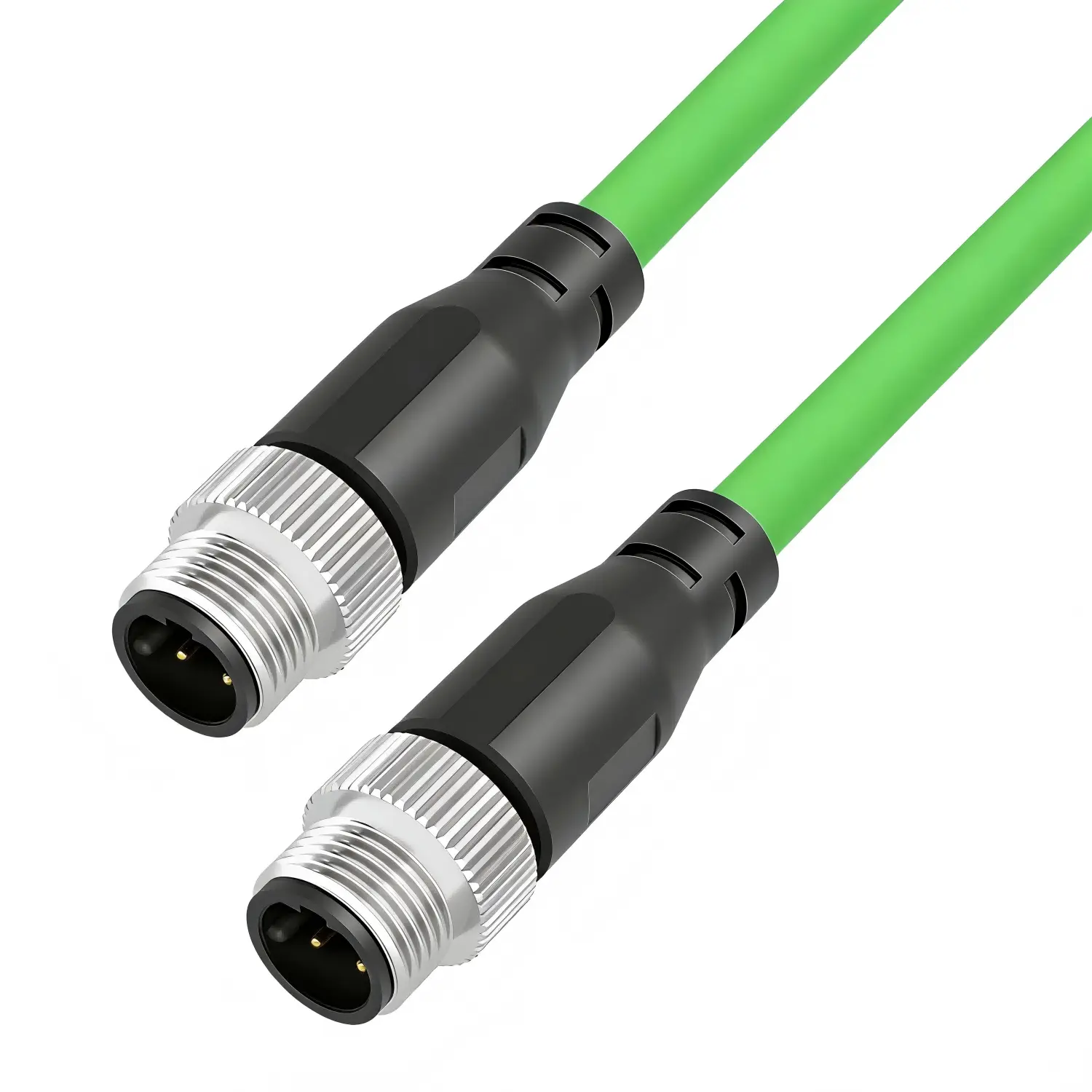

This shielded Cat5e M12-to-M12 cable is specified for industrial fieldbus and device-level Ethernet connections. The assembly features two M12 D‑code threaded connectors, 4×22 AWG stranded conductors, and an SF/UTP construction to suppress EMI in electrically active environments. Standard offering includes 1 m, 3 m and 5 m lengths with a rugged PUR jacket for drag-chain and machine-tool exposure; PVC jacket available for stationary use.

This product is intended for encoders, sensors, industrial cameras and PLC I/O modules where secure, vibration‑resistant locking and reliable Gigabit-capable links are required. M12 D‑code connectors provide screw-lock retention and IP67 sealing when mated. Farsince provides tailored assemblies with specified pinouts, connector coding and extended-length options for plant-floor integration.

Specifications

• Product Type: Cat5e SF/UTP industrial patch cable
• Host Interface: M12 D‑code 4‑pin
• Device Interface: M12 D‑code 4‑pin
• Cable Direction: Straight-through
• Application: Industrial automation, Profinet, machine vision

• Data Rate: 1 Gbps (100 MHz)
• Wire Gauge: 4×22 AWG stranded copper
• Lengths: 1 m, 3 m, 5 m
• Cable Structure: SF/UTP — overall foil + braid, 4 UTP pairs
• Jacket: PVC (fixed) / PUR (drag-chain, oil-resistant)
• Installation: Suitable for continuous-flex (robotic) and stationary runs

• Compatibility: Ethernet switches, PLCs, cameras, PoE devices
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: Cable assembly, 100% continuity testing, batch traceability, ODM support
