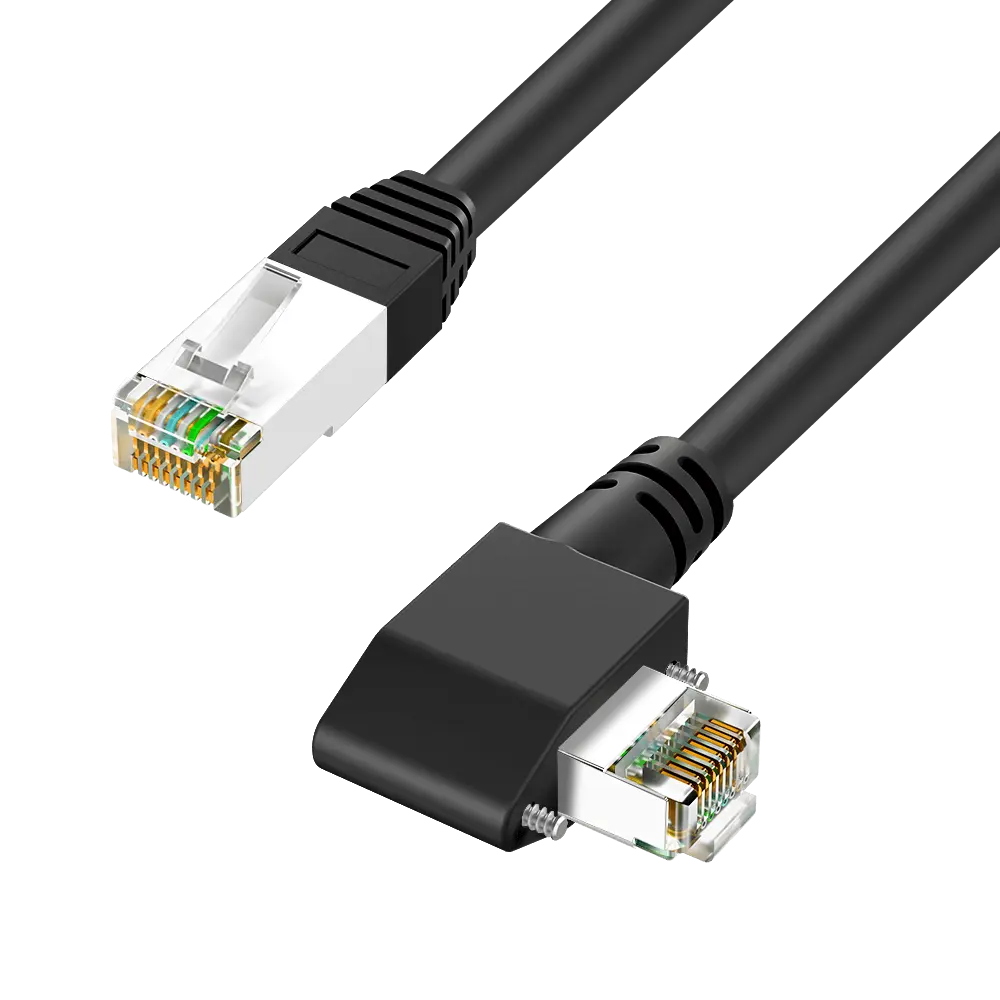

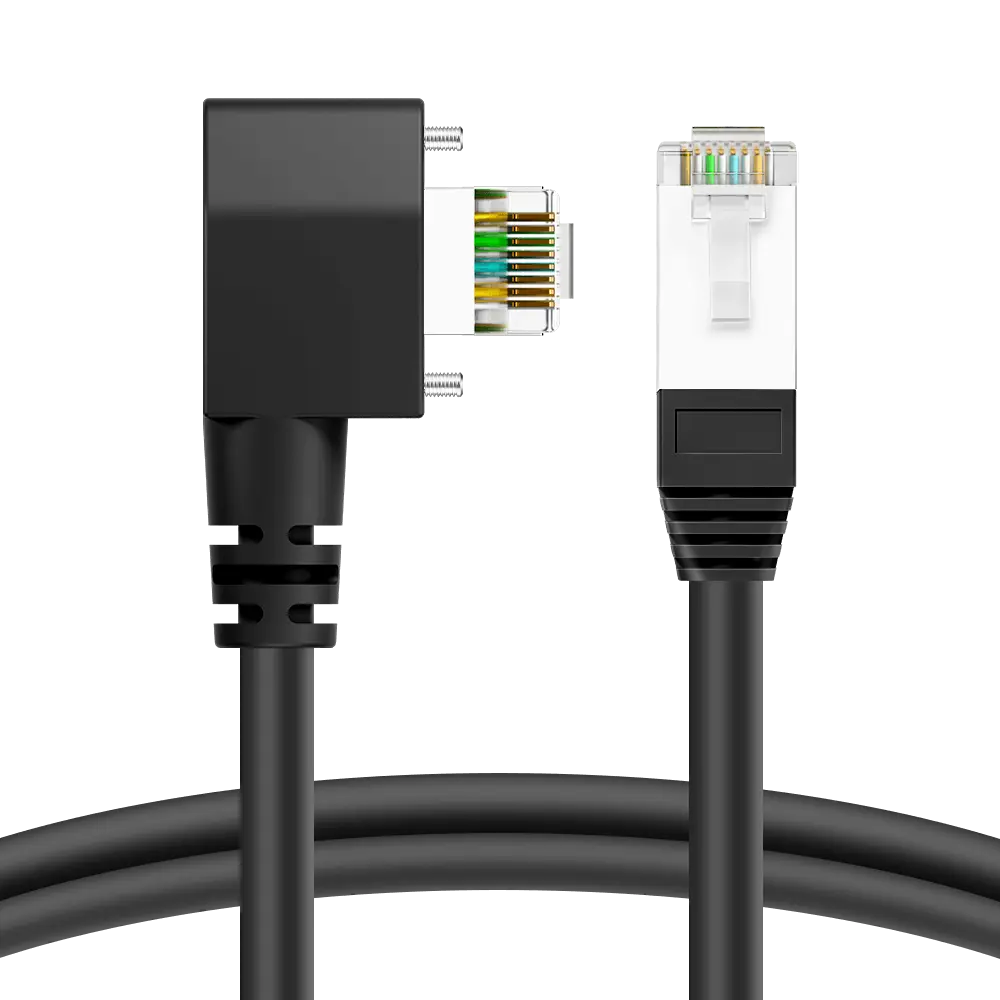

GigE Vision cable RJ45 Left-Angle Plug with Screw Lock for Cameras
Left-angle GigE Vision cable featuring a 90° left-angle screw-lock RJ45 on one end and a straight screw-lock RJ45 on the other. Designed for side-entry ports and shallow housings, the cable reduces mechanical stress at the connector while maintaining robust GigE signal performance in industrial automation settings.
5.0
Model No.:
FS30A02
Brand:
Farsince / OEM
MOQ:
500
Trade Term:
EXW / FOB Ningbo
Lead time:
2–4 weeks
Customization:
Supported
Sample:
Available
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Description
This left-angle cable is targeted at installations where a straight plug would obstruct neighboring components or cause an excessive bend radius. Cat6 SSTP shielding, OFC conductors and gold-plated contacts deliver stable 1 Gbps transmission with minimized EMI. The screw-lock mechanism secures the connector under vibration. Available in high-flex or standard jackets, with optional strain-relief boots and braid-armoring for harsh environments. Compatible with standard locking RJ45 receptacles used on industrial cameras; provide intended port clearance to select left/right orientation.
Specifications
- Connector A: RJ45 90° left-angle with screw-lock
- Connector B: RJ45 straight with screw-lock
- Data rate: up to 1 Gbps
- Conductors: 24 AWG stranded OFC
- Impedance: 100 Ω
- Jacket: PUR (high-flex) / PVC
- Color: Black typical
- Temp range: -40°C to +80°C
- Lengths: 3M, 5M, 10M
- Compliance: RoHS, REACH
