Description

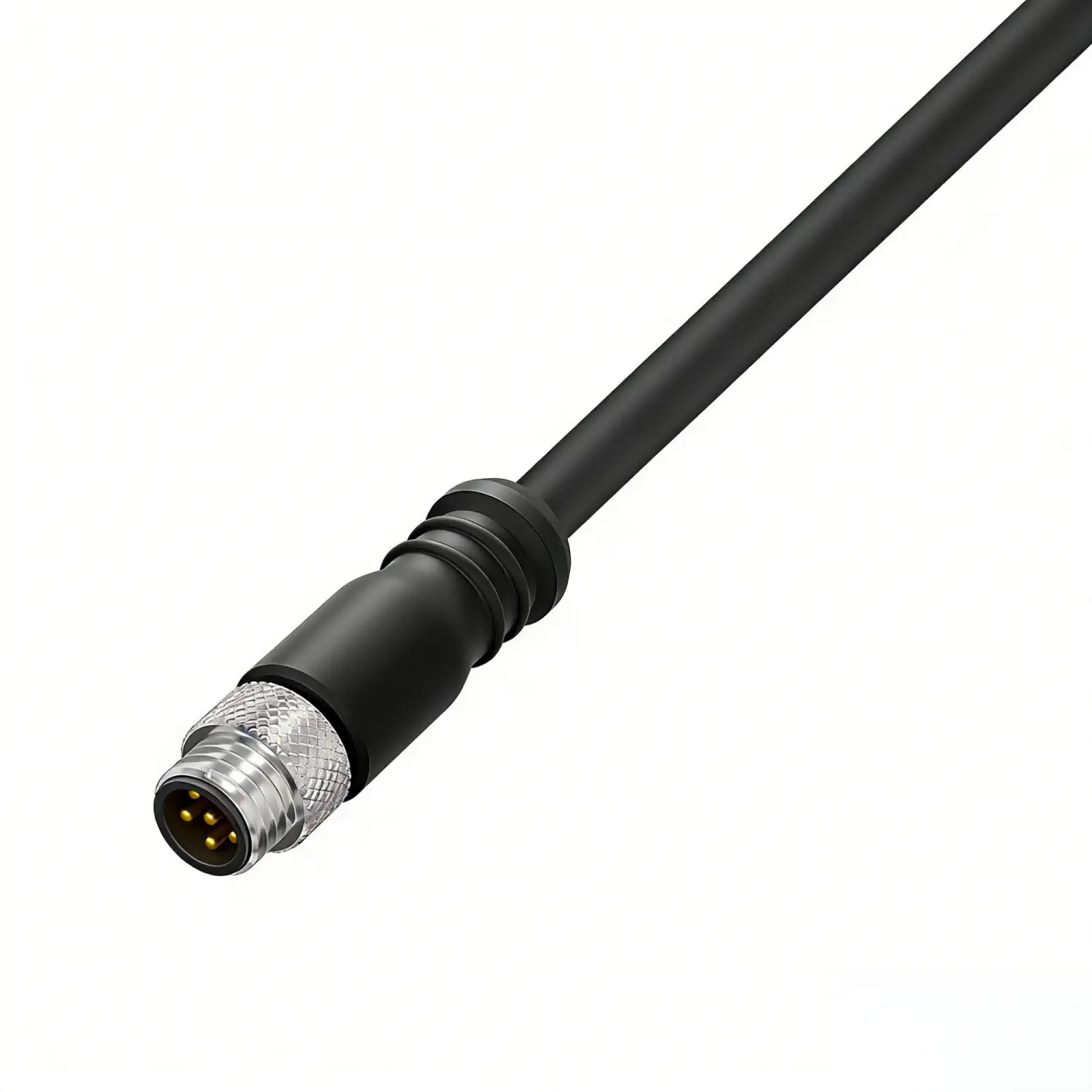

This M8 A‑coded 8‑pin I/O cable assembly provides a compact, factory‑terminated circular connection for sensors, actuators, vision lighting, IO modules and small drives where space is limited. The assembly uses standard M8 A‑coding to ensure keyed mating with compatible M8 ports; conductors are individually insulated and factory-terminated into a molded connector body with a knurled metal coupling and integrated strain relief. Typical deployments include distributed I/O runs, proximity sensor clusters, encoder tap‑offs and short power/signal drops in conveyors, packaging machines and robotics cells.

Offered in two jacket families—Fixed (Type A) for stationary cabinet and panel routing, and High‑Flex (Type B) for continuous motion or cable‑carrier applications—the design reduces connector side‑load and extends flex life. Farsince supplies custom lengths, alternate AWG, shielding, overmolding and connector orientation; assemblies undergo continuity and polarity testing and are documented for traceability to support system integration and maintenance plans.

Specifications

• Product Type: M8 A‑coded 8‑pin I/O cable assembly
• Connector Series: M8 A‑coded circular connector (standard mating)
• Configuration: 8‑pin straight factory‑terminated plug
• Ingress Protection: IP67 when mated (typical)
• Cable Options: Fixed jacket / High‑flex jacket

• Wire Gauge: Typical 26–28 AWG (customizable)
• Conductor: Tinned copper stranded conductors
• Application: Sensors, actuators, IO modules, small drives, vision lighting
• Length: Standard 3m / 5m / 10m; custom lengths on request
• Jacket: PVC (fixed) or PUR/TPE (high-flex) options
• Termination: Factory-molded terminations; field-terminable options on request
• Compatibility: Compatible with M8 A‑coded ports and equivalent field devices
• Compliance: RoHS, REACH
• Customization: Pin-out, length, shielding, overmolding, marking available
• Service Support: 100% continuity testing, batch traceability, ODM support
