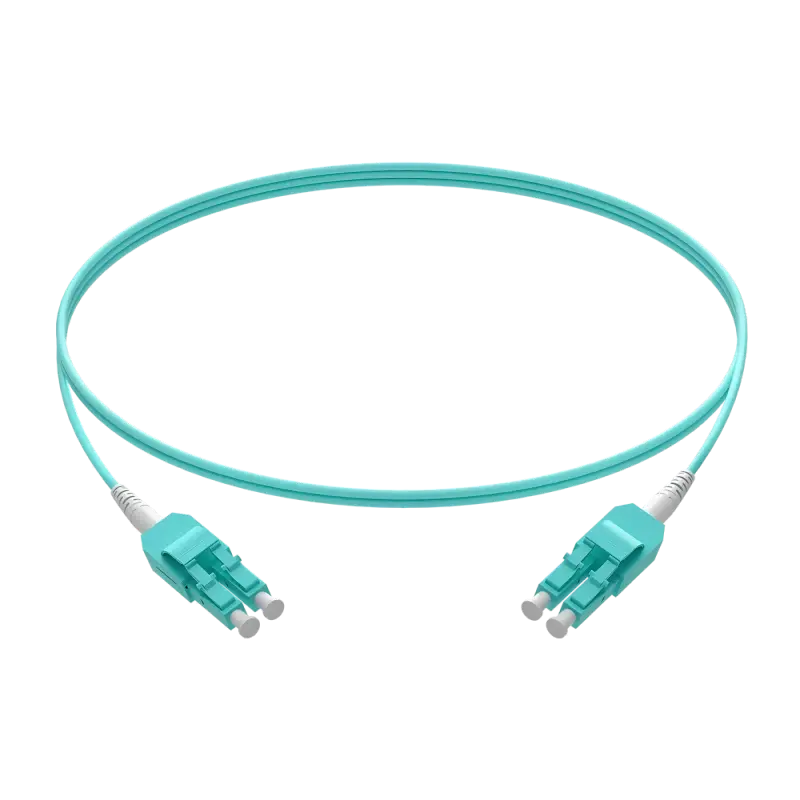

farsince LC/UPC to LC/UPC Multimode OM3 50/125 Duplex Fiber Patch Cable, 2.0mm Aqua Jacket, PVC/LSZH, Multiple Lengths
Low‑loss OM3 duplex cord for 10GBASE‑SR up to 300 m. 100% IL/RL and end‑face inspected with test report—ideal for data center and switch/transceiver interconnects.
5.0
Model No.:
FS61B00
Brand:
Farsince / OEM
MOQ:
500
Trade Term:
EXW / FOB Ningbo
Lead time:
2–4 weeks
Customization:
Supported
Sample:
Available
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Description
This OM3 multimode duplex patch cord features LC/UPC to LC/UPC connectors with precision zirconia ferrules to ensure reliable, low‑loss mating. The lightweight 2.0 mm jacket simplifies routing and is available in PVC (OFNR) or LSZH materials. Each assembly is interferometer‑checked and IL/RL tested and ships with a test report, making it suitable for 10G SR as well as 1/2/4G MM links in data centers and telecom rooms.
Specifications
- Fiber: OM3 MM 50/125 μm (850/1300 nm)
- Construction: Duplex
- Connectors: LC/UPC ↔ LC/UPC (beige), zirconia ceramic ferrules
- Performance: IL ≤0.3 dB (typ. 0.2 dB), RL ≥20 dB
- Reach: Up to 300 m for 10GBASE‑SR (dependent on system)
- Jacket/Color: PVC (OFNR) or LSZH, aqua
- OD: 2.0 mm (3.0 mm option per listing)
- Min bend radius: install ≥10×OD, dynamic ≥20×OD
- Operating temp: -20 to +70 °C
- Compliance: IEC 61754‑20 (LC), IEC 61300, ISO/IEC 11801; RoHS
- Testing: 100% IL/RL with interferometer end‑face inspection, test report included
