Description

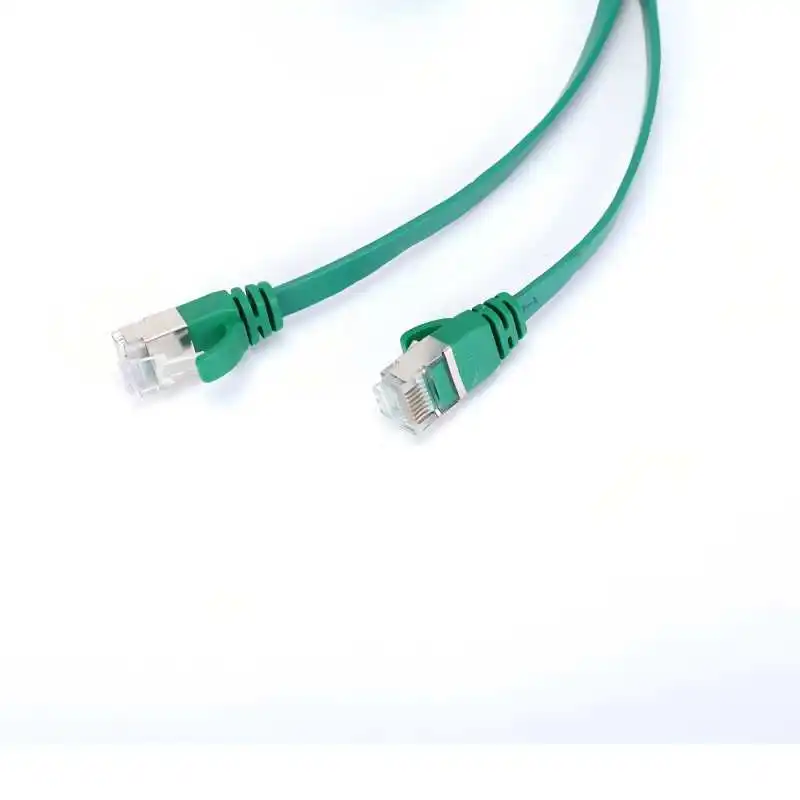

The Farsince Cat6 FTP patch cord uses an F/UTP construction with an overall aluminum‑foil shield and drain wire to suppress EMI and crosstalk, delivering stable Category 6 performance at 250 MHz for Gigabit and up to 2.5/5GBASE‑T on qualified links. Shielded metal RJ45 plugs with gold‑plated contacts ensure low contact resistance and long mating life, while snagless molded strain‑relief boots protect the latch and improve durability. Available in PVC or LSZH jackets in various lengths/colors—ideal for enterprise networks, surveillance, and high‑density PoE deployments.

Specifications

• Category/Performance: Cat6 (Class E), 250 MHz; 10/100/1000BASE‑T; 2.5/5GBASE‑T (channel‑dependent)
• Shielding: FTP (F/UTP overall foil + drain wire)
• Conductor/Gauge: Stranded bare copper, 26 AWG (24 AWG optional)
• Connectors: Shielded RJ45 (8P8C) with metal shell; gold‑plated contacts (≥30 μin standard, 50 μin optional)
• Wiring: T568B standard (T568A on request)
• Jacket/OD: PVC (CM) or LSZH; OD ~5.8–6.3 mm (varies by gauge/jacket)
• PoE Support: IEEE 802.3af/at/bt compatible up to 90 W (observe bundle size and temperature rise)
• Compliance: ANSI/TIA‑568.2‑D, ISO/IEC 11801; interface per IEC 60603‑7; RoHS/REACH
• Lengths/Colors: 0.5/1/2/3/5/10/15/20 m; grey/blue/black/yellow/red, etc.
• Testing: Optional Fluke Channel/Link reports
