Description

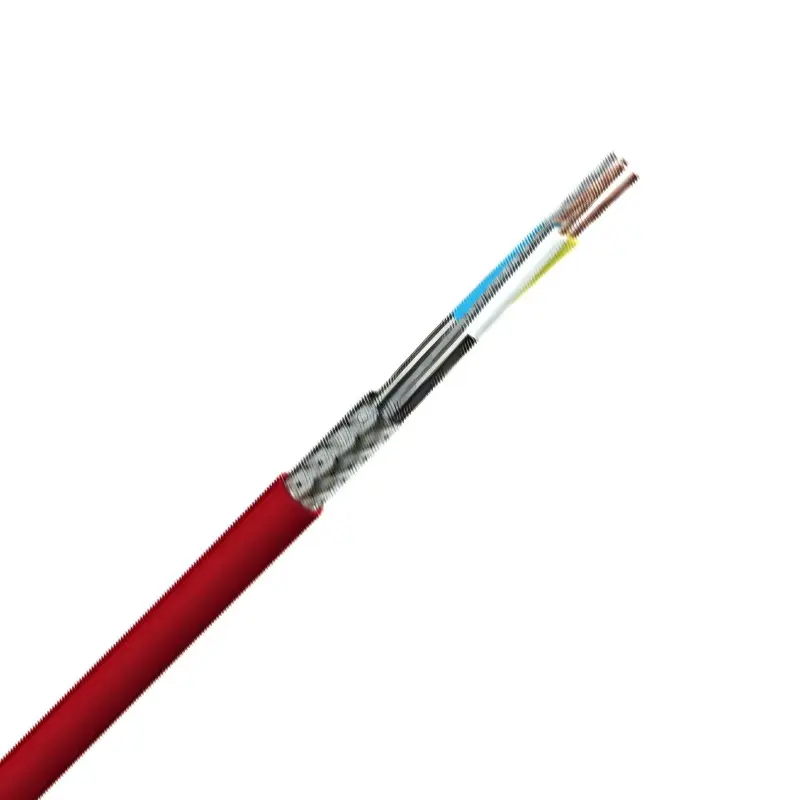

This cable is engineered for CC‑Link (classic) fieldbus installations based on the RS‑485 physical layer. It combines a balanced twisted pair for SDA/SDB signaling with an additional single conductor for the SD common reference, all under an overall shield with drain wire to control noise on factory floors. The controlled 110‑ohm impedance and low capacitance support CC‑Link data rates from low speed up to 10 Mbit/s across typical trunk and branch topologies. It is suited for daisy‑chain links between PLCs, remote I/O, inverters, robots and HMIs, and generally terminates on screw terminals, DB9 or M12 connectors, depending on device design.

Specifications

• Product Type: CC‑Link classic RS‑485 fieldbus cable (3‑core + drain)
• Standard: CC‑Link (EN 61158/IEC 61158 physical layer based on RS‑485)
• Impedance: 110 Ω balanced (typical CC‑Link requirement)
• Cable Structure: 1× twisted pair (SDA/SDB) + 1× single core (SD) + overall shield + drain
• Conductor: Stranded tinned copper, approx. 22 AWG for pair and single core (typical)
• Shielding: Aluminum/PET foil with tinned copper braid and drain wire
• Data Rate: Up to 10 Mbit/s (per CC‑Link specification and topology)
• Application: PLCs, remote I/O, drives, robots, HMIs; trunk and drop lines
• Installation: Daisy‑chain bus; terminate and ground shield at segment ends
• Host/Device Interface: Terminal block, DB9, or M12 per equipment
• Jacket: Industrial PVC; PUR or LSZH options available
• Color Identification: Industry‑recognized CC‑Link color coding for quick routing
• Cable Length: Supplied on reels or custom cuts
• Compliance: RoHS, REACH
• Customization: Gauge, jacket rating/color, print, pre‑terminated assemblies and kits
