Description

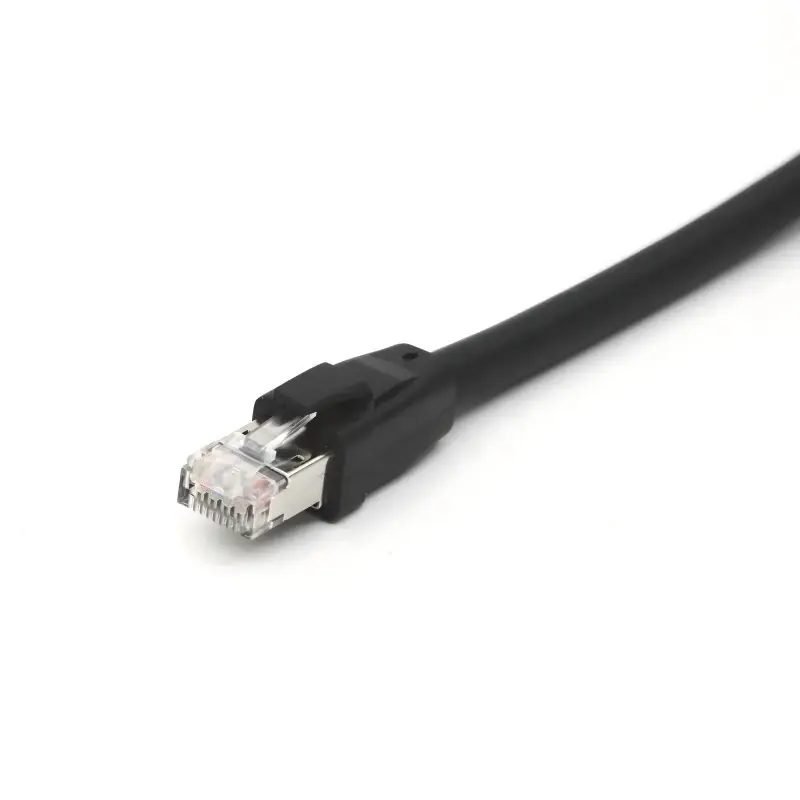

Designed for data centers and low‑latency edge networks, this Cat8 braided patch cord uses an S/FTP construction with 26AWG stranded copper to deliver reliable 25Gbps up to 2GHz. Shielded metal RJ45 plugs feature 50‑microinch gold‑plated contacts and snagless boots for durability and low contact resistance. A red/black braided sleeve over PVC/LSZH enhances abrasion resistance and flexibility. GHMT‑verified and Fluke DSX‑8000 tested to Cat8.1 Class I channel (typical 30 m channel, 24 m permanent link). PoE++ (IEEE 802.3bt) up to 90 W is supported for high‑power devices.

Specifications

• Category/Performance: Cat8.1 Class I; up to 25 Gbps; 1 MHz–2,000 MHz
• Shielding: S/FTP (per‑pair aluminum foil + overall tinned‑copper braid), ~30% braid coverage
• Conductor/Gauge: 26 AWG stranded copper
• Cable Jacket: PVC or LSZH; red/black braided outer sleeving
• OD/Bend Radius: OD ≈ 5.9 mm; min. bend radius ≈ 23.6 mm
• Connectors: Shielded RJ45 (zinc‑alloy shell); copper‑alloy contacts with 50 μin gold; ≥1,200 mating cycles
• Wiring: T568B standard (T568A/crossover on request)
• PoE: IEEE 802.3bt PoE++ up to 90 W; IEC 60512‑99‑002:2022 (4PPoE connector compliance)
• Testing/Validation: GHMT verified; Fluke DSX‑8000 tested; Cat8.1 channel configuration (typical permanent link 24 m + cords, total up to 30 m)
• Construction details: Insulation OD ≈ 1.06 mm; no spline; jacket thickness ≈ 0.6 mm
• Temperature: Install 0 to +50°C; Operating −20 to +60°C; Storage −20 to +70°C
• Compliance: ISO/IEC 11801, ANSI/TIA‑568.2‑D, IEC 60512‑99‑002:2022, RoHS/REACH
• Length/Color: Custom lengths (commonly 0.5–10 m); red/black braided appearance
