Description

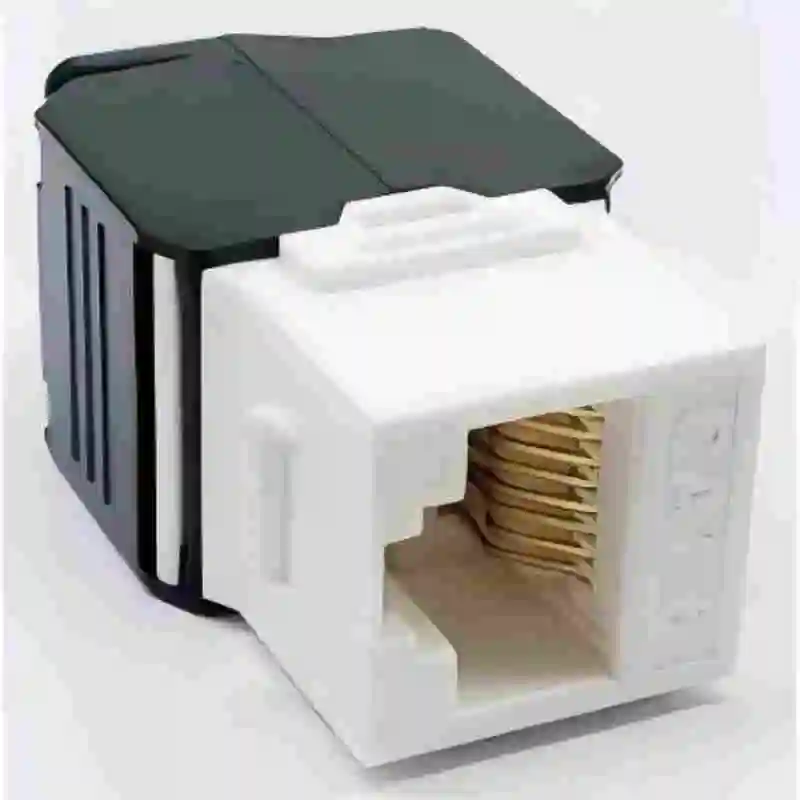

This Cat6A keystone jack features a tool‑less latch‑down termination that completes all eight conductors in one press for faster, more reliable installs. Phosphor‑bronze contacts with thick gold plating ensure low contact resistance and durability. The standard keystone footprint fits 86/118 wall plates and 19‑inch patch panels. Supports 10GBASE‑T and PoE/PoE+/PoE++. Available in UTP or FTP (shielded) versions.

Specifications

• Category/Performance: Cat6A (Class EA), 500 MHz, 10G capable
• Termination: Tool‑less; T568A/B selectable; typical strip length 25–30 mm
• Conductor Range: 22–26 AWG solid/stranded; insulation OD ~0.9–1.6 mm
• Contacts: Phosphor‑bronze, 50 μin gold on mating area; ≥750 mating cycles
• Housing: PC/ABS, UL94V‑0; white front, black rear housing
• Versions: UTP default; FTP shielded option with metal shell and ground spring
• Footprint: Standard keystone size for 19" panels and wall plates
• PoE: IEEE 802.3af/at/bt (4PPoE) compatible; IEC 60512‑99‑001/002 test concept
• Compliance: ANSI/TIA‑568.2‑D, ISO/IEC 11801, IEC 60603‑7 series; RoHS/REACH
