Description

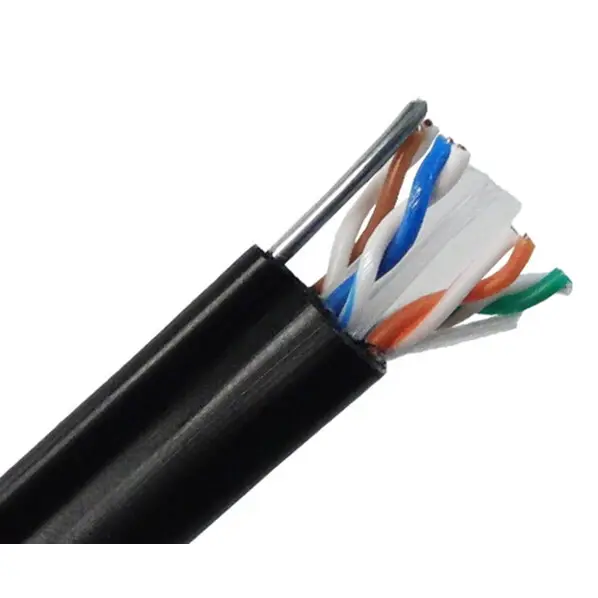

This cable is an outdoor Category 6 F/UTP figure‑8 design that integrates a galvanized steel messenger with a shielded four‑pair LAN core under a UV‑resistant PE jacket. The overall aluminum‑foil shield with drain wire helps suppress EMI in outdoor corridors, enabling stable 10/100/1000BASE‑T links up to 100 m and short‑reach 10GBASE‑T where layout permits. The messenger supports self‑support spans between masts or façades without a separate lashing wire, ideal for connecting rooftop radios, outdoor cameras, and campus buildings while keeping pathways off the ground.

Specifications

• Product Type: Cat6 F/UTP aerial outdoor Ethernet cable (figure‑8)
• Category/Performance: ANSI/TIA‑568.2‑D Cat6, 250 MHz
• Cable Structure: 4 twisted pairs + overall foil shield with drain wire
• Conductor: 23 AWG solid conductors
• Shielding: Aluminum PET foil (F/UTP), overall
• Messenger: Integrated galvanized steel strand, self‑support
• Jacket: Black UV‑resistant PE (outdoor CMX style)
• Application: Aerial spans between buildings, cameras, APs, outdoor switches
• Data Rate: 10/100/1000BASE‑T to 100 m; 10GBASE‑T up to 55 m (typical Cat6)
• Installation: Figure‑8 design for clamping to poles and brackets; ground the shield
• Compatibility: Works with shielded Cat6 RJ45 plugs, jacks and panels
• Cable Length: Supplied on reels or custom cuts
• Compliance: RoHS, REACH
• Customization: Messenger gauge, length/printing, pre‑terminated shielded assemblies
• Service Support: Cable samples, termination guidance, labeling and kitting
