Description

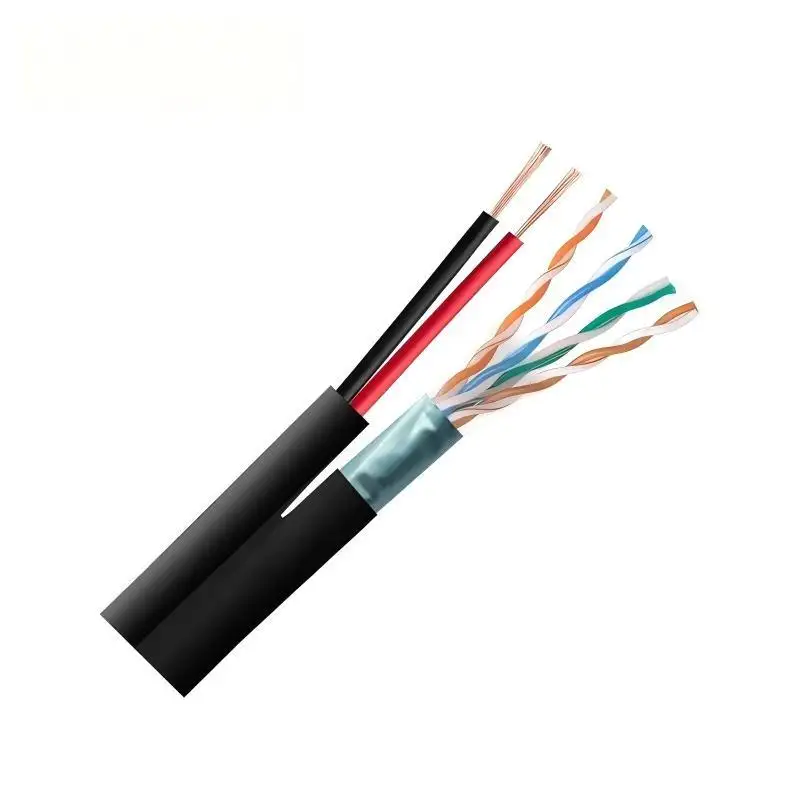

This product is a figure‑8 outdoor composite that combines a shielded Cat5e 4‑pair data core with a separate 2×0.75mm² power pair and an integral galvanized steel messenger. The Cat5e element uses solid copper conductors with an overall foil shield and drain wire to control EMI on aerial routes, supporting 10/100/1000BASE‑T links up to the standard 100‑meter channel. The parallel red/black pair delivers 12/24 VDC to endpoints that are non‑PoE or require higher current than PoE can supply. The messenger carries tensile load for self‑supporting spans between buildings, poles and rooftops—ideal for IP cameras, wireless bridges and outdoor access points.

Specifications

• Product Type: Cat5e F/UTP aerial composite cable (data + power + messenger)
• Category/Performance: ANSI/TIA‑568.2‑D Cat5e, 100 Ω, 100 MHz
• Cable Structure: 4‑pair Cat5e core + 2×0.75mm² power pair + galvanized steel messenger
• Conductor: Data 24 AWG solid copper; Power stranded copper
• Shielding: Overall aluminum foil with drain wire on Cat5e core
• Data Rate: 10/100/1000BASE‑T up to 100 m channel
• Power Design: Two‑core 0.75mm² for 12/24 VDC distribution
• Jacket: Black UV‑resistant PE for outdoor service
• Application: Aerial spans for IP cameras, APs, point‑to‑point radios, inter‑building links
• PoE Support: Compatible with PoE; auxiliary pair for higher current or redundancy
• Installation: Self‑support figure‑8; bond/ground shield and messenger per local codes
• Compatibility: Shielded RJ45 terminations; DC barrel/terminal power connections
• Cable Length: Supplied on reels or custom cuts
• Compliance: RoHS, REACH
• Customization: Messenger gauge, gel‑filled/armoured, LSZH jacket, pre‑terminated sets
