Description

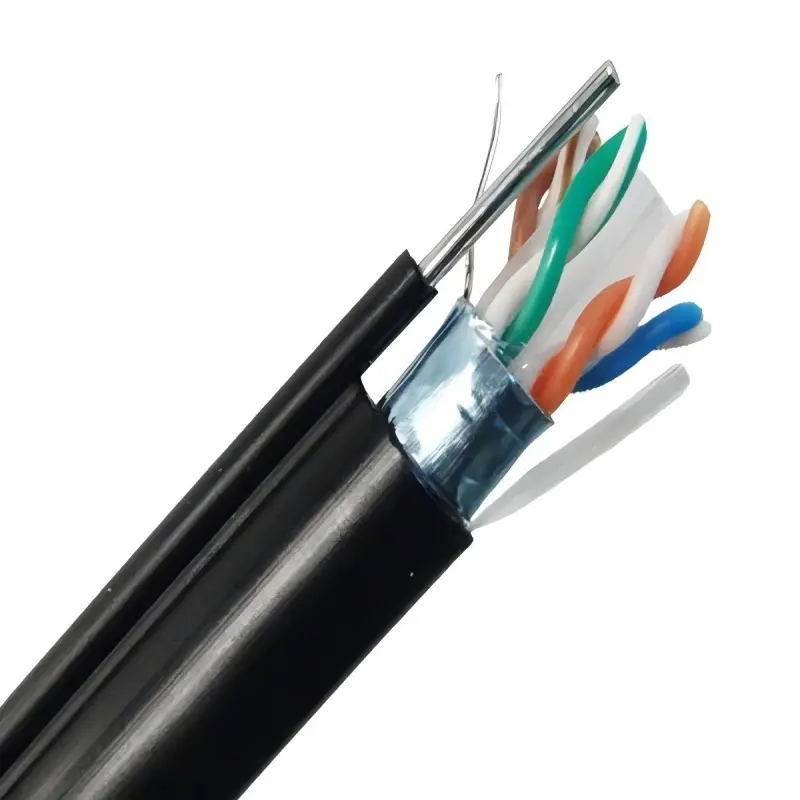

This cable is an outdoor Category 5e F/UTP figure‑8 design that integrates a galvanized steel messenger with a shielded four‑pair LAN core under a UV‑resistant PE jacket. The data core uses solid copper conductors with an overall aluminum‑foil shield and drain wire to control external noise in aerial corridors. It supports 10/100/1000BASE‑T links up to the standard 100 m channel and is suitable for PoE/PoE+ devices such as outdoor IP cameras, wireless access points and point‑to‑point radios. The messenger carries the mechanical load for self‑supporting spans, eliminating separate lashing wire and simplifying attachments to poles, façades and brackets.

Specifications

• Product Type: Cat5e F/UTP aerial outdoor Ethernet cable (figure‑8)

• Category/Performance: ANSI/TIA‑568.2‑D Cat5e, 100 Ω, 100 MHz

• Conductor: Solid bare copper, 4 twisted pairs

• Wire Gauge: 24 AWG (typical Cat5e)

• Shielding: Overall aluminum foil with drain wire (F/UTP)

• Messenger: Integrated galvanized steel strand for self‑support spans

• Jacket: Black UV‑resistant PE, outdoor rated

• Application: Building‑to‑building links, outdoor cameras, APs, WISP runs

• Data Rate: 10/100/1000BASE‑T to 100 m channel

• PoE Support: Compatible with IEEE 802.3af/at

• Installation: Figure‑8 design for clamping to poles and brackets; bond/ground

• Compatibility: Use with shielded Cat5e RJ45 plugs, jacks and panels

• Cable Length: Supplied on reels or custom cuts

• Compliance: RoHS, REACH

• Customization: Gel‑filled, LSZH or armoured options; messenger size; pre‑terminated sets

• Service Support: Drawings, labeling, kitting and project packing on request
