Description

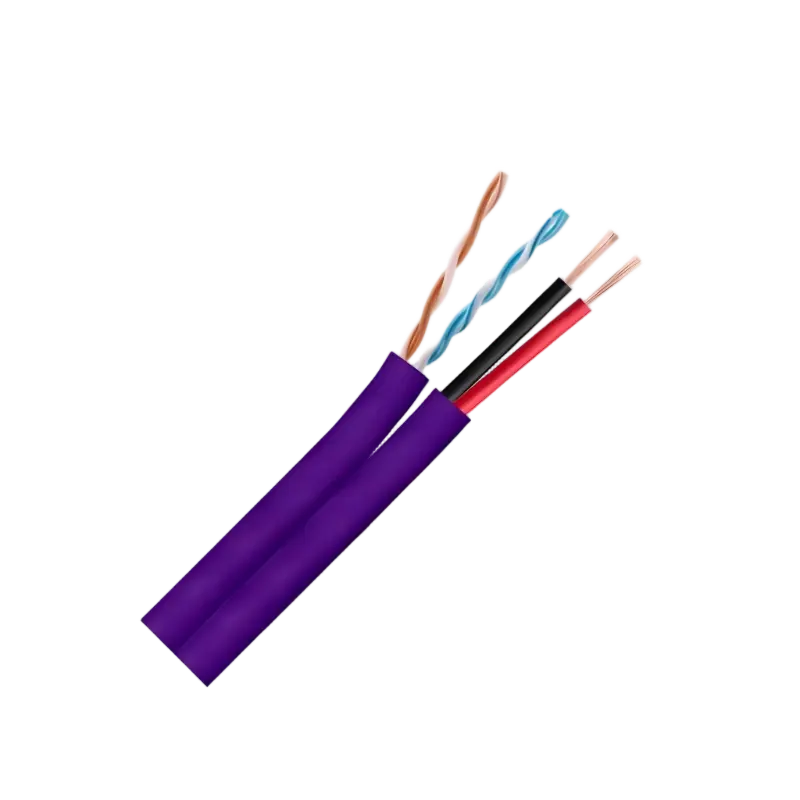

This cable integrates a two‑pair UTP data core with a red/black 18 AWG power pair in a Siamese layout under a single jacket. The data element is built to Cat5e electrical performance on two pairs (100 Ω), suitable for 10/100BASE‑TX Ethernet, serial device networking and voice/control links, typically terminated with RJ45 connectors. The adjacent 18/2 pair carries 12 VDC or 24 VDC from a centralized supply to end devices. It is designed for installations where equipment is non‑PoE, requires higher current than PoE can deliver, or where separate power distribution is preferred—such as IP cameras, intercoms, access control readers, small controllers and building automation nodes.

Specifications

• Product Type: 2‑pair UTP + 2‑conductor power Siamese cable
• Data Pairs: 2 × twisted pairs, Cat5e electrical performance, 100 Ω
• Data Rate: 10/100BASE‑TX Ethernet up to 100 m (application dependent)
• Power Design: 18 AWG red/black pair for 12/24 VDC distribution
• Wire Gauge: Data 24 AWG (typical); Power 18 AWG stranded (typical)
• Cable Structure: Parallel bonded data and power under composite jacket
• Application: IP cameras, door stations, access control, intercom, IoT/controls
• Host Interface: RJ45 for data; DC barrel or terminal block for power
• Installation: Single‑pull composite; clear polarity identification
• Compatibility: For non‑PoE devices or where higher current is required
• Jacket: PVC indoor; LSZH or outdoor PE options available
• Shielding: Unshielded UTP data core; shielding options on request
• Cable Length: Supplied on reels or custom cuts
• Compliance: RoHS, REACH
• Customization: Jacket rating, print/ID, lengths, factory‑terminated assemblies
