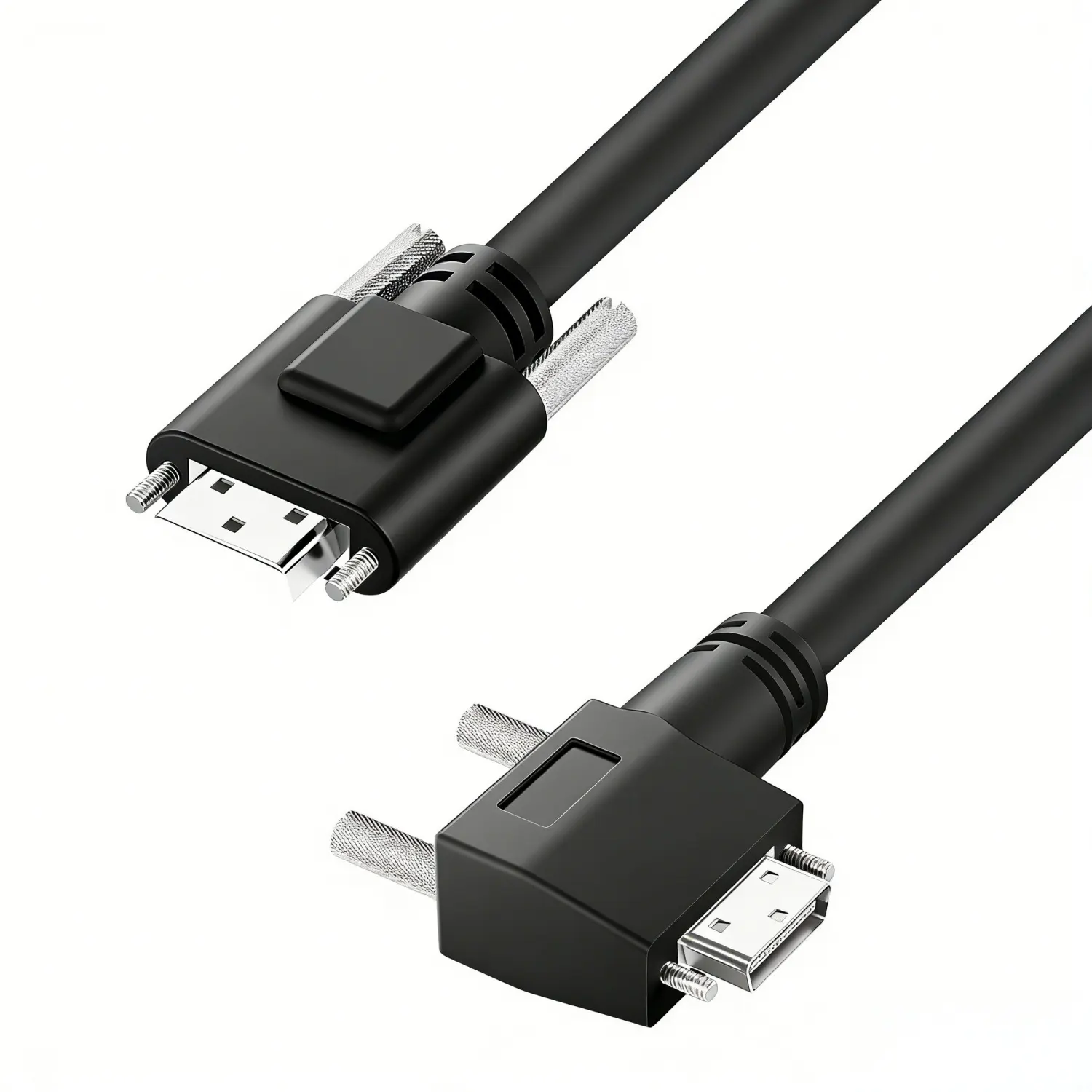

Camera cable Camera Link SDR-to-SDR Bent-Head 90° Angled Connector
Compact SDR-to-SDR Camera Link cable with a 90° bent-head termination on the camera end, engineered for space-constrained machine-vision heads and embedded imaging modules. Maintains Camera Link signal integrity while enabling tidy rear clearance behind cameras and reducing stress at the connector during installation and service.
5.0
Model No.:
FS30B04
Brand:
Farsince / OEM
MOQ:
500
Trade Term:
EXW / FOB Ningbo
Lead time:
2–4 weeks
Customization:
Supported
Sample:
Available
Warranty:
1 Year
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Description
This item preserves controlled-impedance, shielded differential pairs required by Camera Link, providing a low-profile mating geometry to fit recessed ports or tight enclosures. The bent SDR termination is offered in left/right directions to suit camera housings to withstand repeated connect/disconnect cycles and limited dynamic flex. Optional features: PoCL wiring, high-flex jacket for moving applications and braided shielding for EMI-heavy environments. Confirm SDR mechanical family/gender and bent-head orientation to ensure correct fit before ordering.
Specifications
- Connector A: SDR bent-head 90° with screw-lock
- Connector B: SDR straight with screw-lock
- Supported Camera Link modes: Base/Medium/Full (specify)
- PoCL: Optional (specify power requirements)
- Jacket: PVC/PUR
- Color: Black typical
- Temp range: -20°C to +70°C typical
- Lengths: 3M, 5M, 8M, 10M
- Compliance: RoHS, REACH
