Description

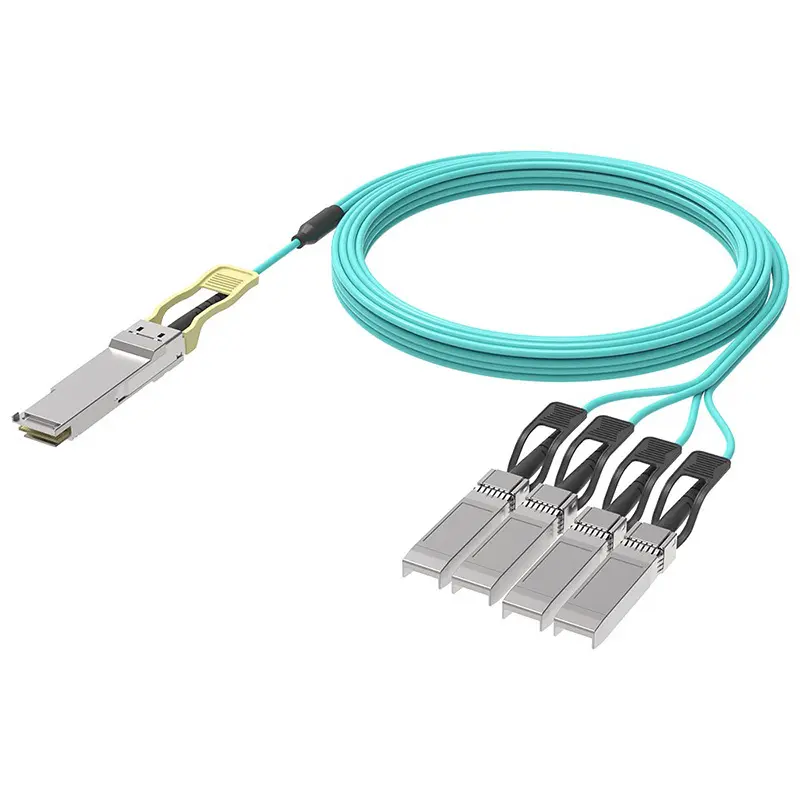

Farsince 40G QSFP+ to 4×SFP+ AOC integrates a QSFP+ SR4 transceiver and four SFP+ SR optical ends with a fixed multimode fiber harness. The assembly delivers four parallel 10.3125 Gb/s lanes at 850 nm from a single QSFP+ cage to four independent 10G SFP+ ports on switches, servers or storage. Designed for short‑reach 40G to 4×10G Ethernet breakouts, it is supplied in standard lengths from 1 to 50 meters to cover top‑of‑rack fan‑outs, leaf‑to‑server links and aggregation upgrades without separate optics and patch cords.

The lightweight optical cable eases routing and avoids EMI coupling compared with copper DACs. Hot‑plug connectors with pull‑tabs simplify service in high‑density chassis. Electrical and management interfaces follow SFF‑8436 (QSFP+) and SFF‑8431 (SFP+); typical operation is from a 3.3 V supply with total power under 2.5 W. Farsince supports project customization including length options, leg labeling/ID and bundle kitting to match data‑center rollouts.

Specifications

• Product Type: QSFP+ to 4×SFP+ Active Optical Cable (AOC)
• Host Interface: QSFP+ (40GBASE‑SR4) to 4× SFP+ (10GBASE‑SR), MSA compliant
• Data Rate: 4×10.3125 Gb/s lanes; 40 Gb/s aggregate
• Wavelength: 850 nm VCSEL/PIN optics
• Fan‑out: Four equal‑length SFP+ legs
• Cable Length: 1 m to 50 m options
• Supply Voltage: 3.3 V
• Power Consumption: ≤2.5 W per cable
• Operating Temperature: 0–70°C
• Installation: Hot‑pluggable with pull‑tab latches; observe bend radius
• Application: Breakout from 40G switch ports to four 10G NICs or switch ports
• Compatibility: 40G QSFP+ hosts and 10G SFP+ ports; not for 25G SFP28
• Standards: SFF‑8436 (QSFP+), SFF‑8431 (SFP+), IEEE 802.3bm/802.3ae
• Compliance: RoHS, REACH
• Customization: Length, leg labeling/ID, project kitting
