Description

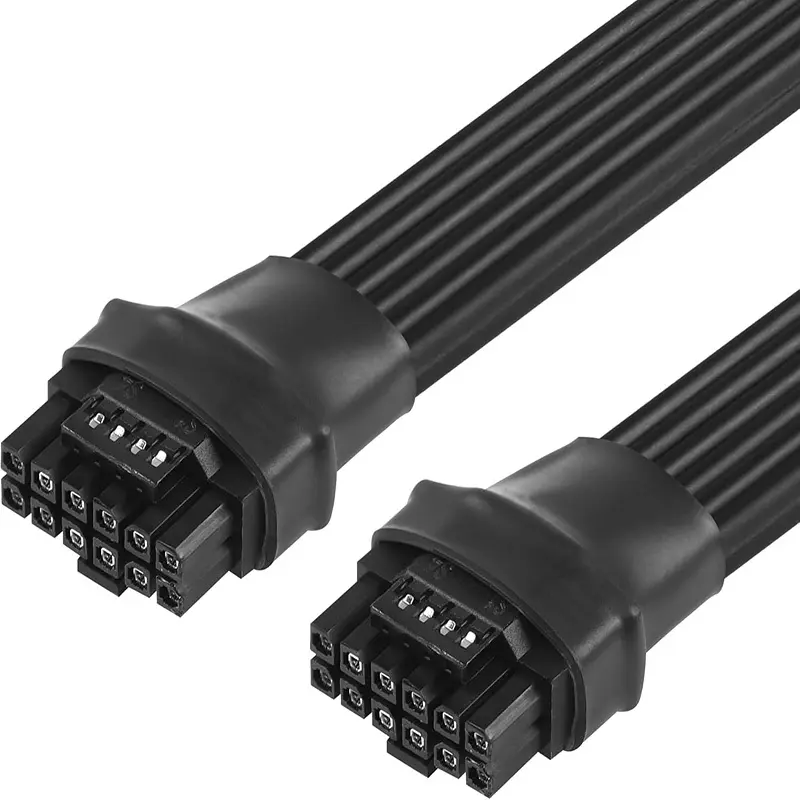

This assembly is a high‑current 12VHPWR (12+4 pin) power cable designed to link a 3.0/PCIe 5.0 power supply directly to a graphics card equipped with a 12VHPWR receptacle. Both ends use locking 16‑pin plugs with molded strain reliefs to ensure full engagement at the PSU and GPU. The 30 cm length helps move the bend point away from the connector housing to reduce heat build‑up from tight bends, supporting reliable delivery of 12 V power and sense signals for modern high‑draw accelerators such as NVIDIA RTX 40‑series.

Farsince builds the harness with high‑strand copper conductors and low‑resistance crimp terminations to support up to 600 W per the ATX 3.0 specification when used with compliant PSUs and GPU connectors. Individual conductor grouping maintains flexibility while a flat profile eases routing behind trays or past radiators. Installation is straightforward: insert each plug fully until the latch engages and avoid sharp bends within a few centimeters of the housing. OEM customization is available for length, sleeving, angled overmolds and project‑specific labeling.

Specifications

• Product Type: 12VHPWR (12+4) high‑current power cable
• Host Interface: ATX 3.0 PSU 12VHPWR output (male plug)
• Device Interface: GPU 12VHPWR input (male plug to card receptacle)
• Cable Direction: Male‑to‑male
• Power Design: Supports up to 600 W per ATX 3.0/PCIe 5.0 when used with compliant hardware
• Conductors: High‑strand copper; dedicated 4‑pin sense lines
• Wire Gauge: 16 AWG power conductors (typical for 600 W class)
• Jacket/Structure: Flexible flat bundle with molded strain reliefs
• Application: Direct PSU‑to‑GPU connection for modern high‑power graphics cards
• Installation: Ensure full insertion and latch; avoid tight bends near connectors
• Compatibility: ATX 3.0 PSUs with native 12VHPWR and GPUs with 12VHPWR input; not an 8‑pin adapter
• Operating Voltage: 12 V DC rail
• Compliance: RoHS, REACH
• Customization: Length, sleeving color, angled plugs, labeling
